Cabin Denmark

Minor White Chart Light Stainless Steel

Minor White Chart Light Stainless Steel

931WH

€169,90 EUR
€169,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

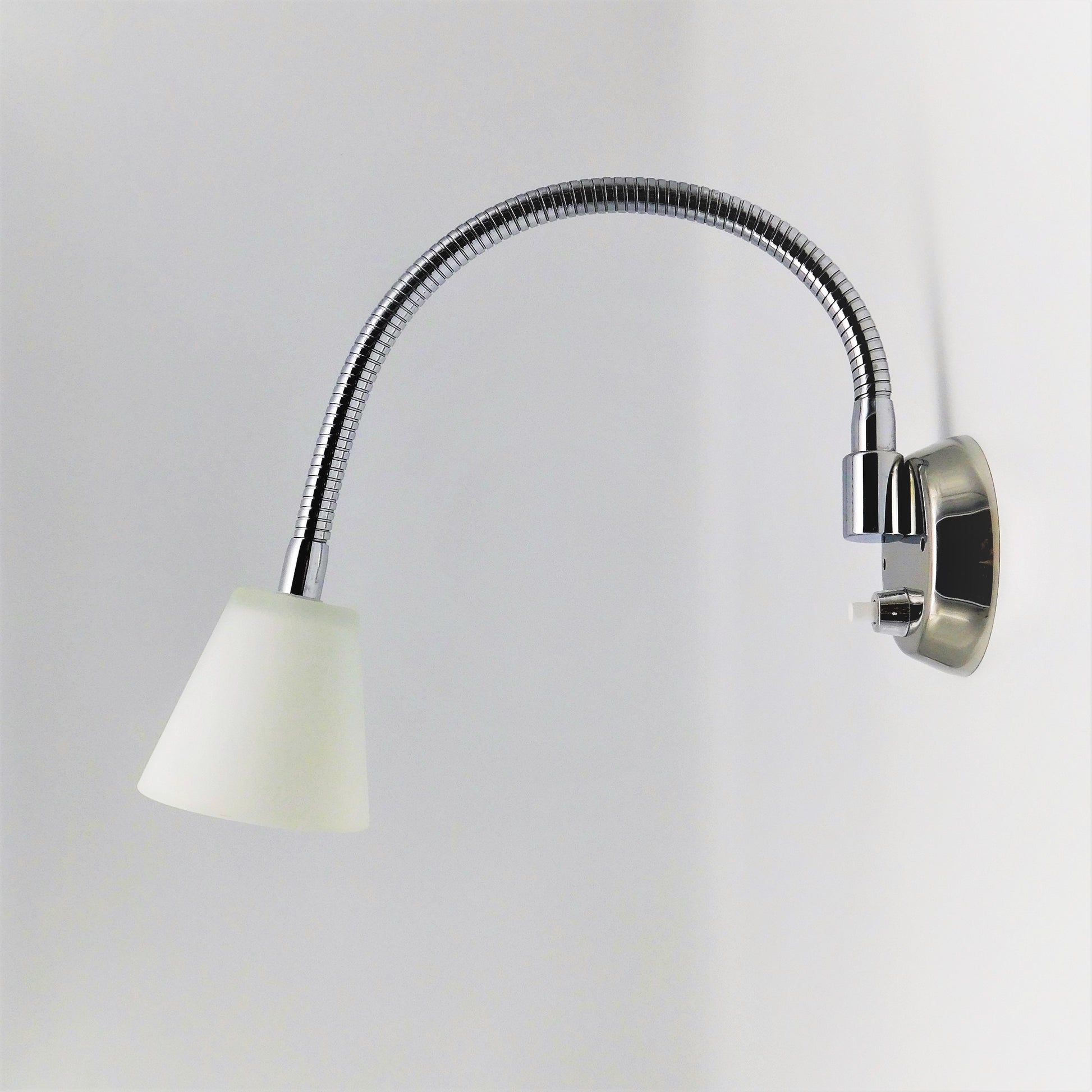

A table chart light in stainless steel with an opal glass shade for the chart table, the navigation station and the living areas below deck. The replaceable Cabin G4 marine-grade LED gives 170 lm of warm 2700 K light with CRI above 85 from only 2 W, and the 10–32 V DC input suits 12 V and 24 V systems. A 400 mm flex arm and a shade that swivels in all directions direct the light precisely where it is needed.

  • 170 lmLight output
  • 2 WPower consumption
  • 2700 KWarm white, CRI >85
  • 10–32 V DC 12 V and 24 V systems
  • IP44Splash protected
  • Ø 72 × 110 mmDimensions
  • Stainless steelMaterial
  • >20,000 hLED lifetime

Where to use it
  • Chart table
  • Navigation station
  • Saloon
  • Cabins

Reading light for the chart table, the navigation station and the living areas below deck. The shade swivels in all directions, so the light falls on charts, books or notes where it is needed. Warm 2700 K light with CRI above 85 keeps colours natural and makes reading over longer periods comfortable. With 170 lm from 2 W, the light suits long evenings on battery power.

Specifications

Light

Light output170 lm
Colour temperature2700 K warm white
Colour renderingCRI >85

Electrical

Supply voltage10–32 V DC
Power consumption2 W
Current at 12 Vapprox. 0.17 A
Current at 24 Vapprox. 0.08 A

Mechanical

DimensionsØ 72 × 110 mm
MaterialStainless steel, Opal glass
Ingress protectionIP44
LED lifetime>20,000 h

Installation and dimensions

Table version with a Ø 72 mm base plate and a 400 mm flex arm. Connect the light to the DC supply: the 10–32 V DC input covers 12 V and 24 V systems.

The light source is a replaceable Cabin G4 marine-grade LED with a rated lifetime of 20,000 h. The G4 LED can be renewed without changing the light.

Frequently asked questions

What is the Minor White Chart Light used for?
As a reading light at the chart table and navigation station, and as a general reading light in the saloon and cabins. The 400 mm flex arm and the swivelling shade direct the light onto charts, books or notes.

Does it work on 12 V and 24 V boats?
Yes. The input range is 10–32 V DC, which covers both systems.

What colour temperature and colour rendering does it have?
Warm white 2700 K with a colour rendering index above 85, for natural colours and comfortable reading.

How much power does it use?
Only 2 W for 170 lm, about 0.17 A at 12 V. That suits long evenings on battery power.

What are the dimensions?

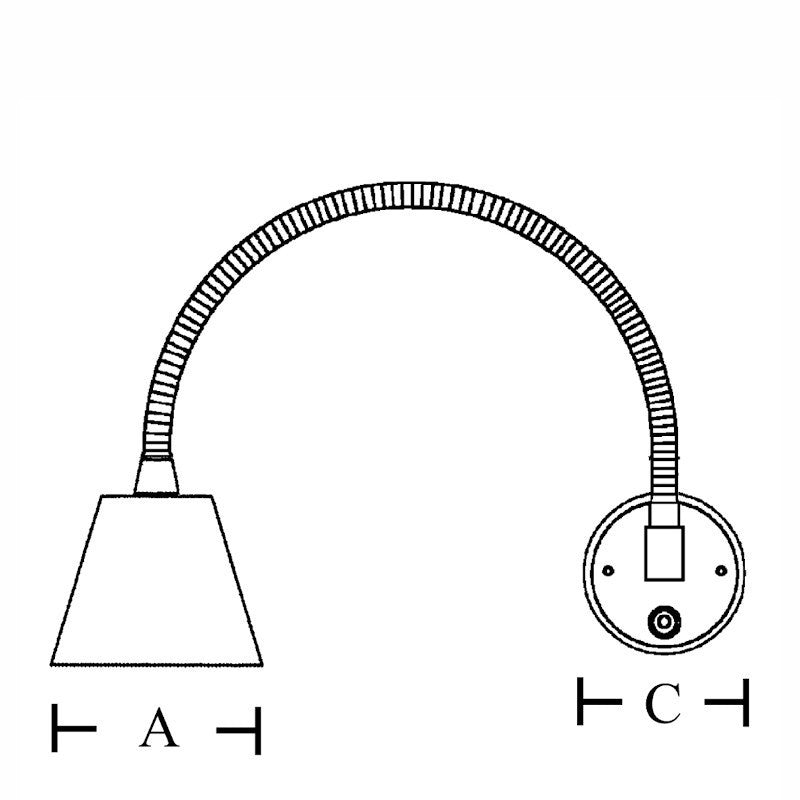

Base plate Ø 72 mm, shade Ø 70 mm, width and height 110 mm, flex arm 400 mm.

Can the light source be replaced?

Yes. The light uses a Cabin G4 marine-grade LED, which you can easily replace yourself.
Matching spare part: G4 LED COB 2WF Marine Grade Bulb

Matching spare parts
