Cabin Denmark

G4 LED COB 2WF Marine Grade Bulb

G4 LED COB 2WF Marine Grade Bulb

G4 LED COB 10-30V 2WF

€19,90 EUR
€19,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

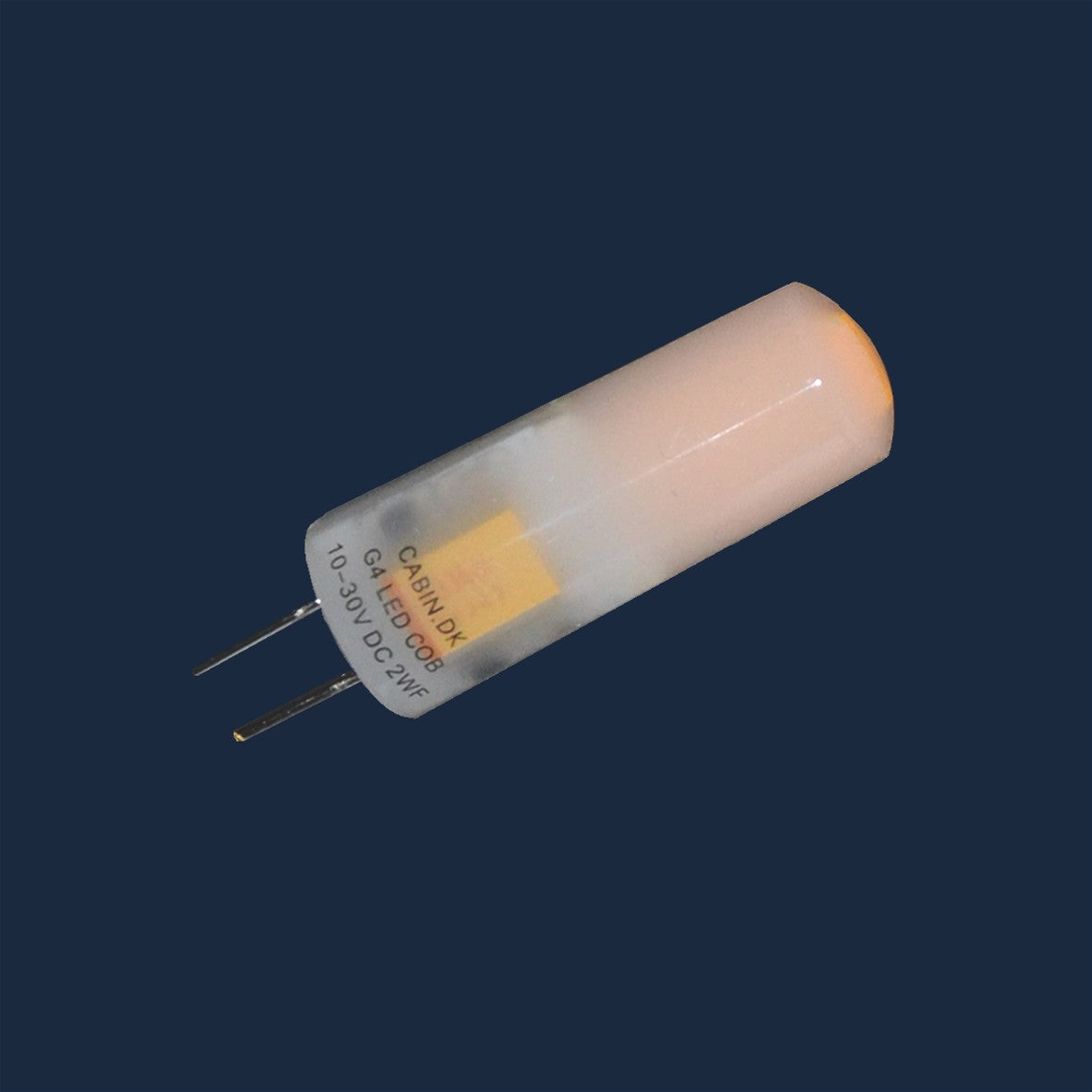

A replaceable Cabin G4 marine-grade LED with COB technology for G4 light fittings on yachts and boats, designed to replace G4 halogen bulbs. It gives 170 lm from 2 W, uses up to 80% less energy than a halogen bulb and runs on 10–32 V DC through its integrated driver. Rated lifespan is 20,000 h.

  • 170 lmLight output
  • 2 WPower consumption
  • 2600 KWarm white, CRI >80
  • 10–32 V DC 12 V and 24 V systems
  • IP65Ingress protection
  • >20,000 hLED lifetime

Where to use it

The G4 LED converts existing G4 fittings on board from halogen to LED. At 2 W and up to 80% less energy than a halogen bulb, it takes load off the battery during long hours of use. The 10–32 V DC input covers 12 V and 24 V systems. Warm white light gives a calm, natural impression, and the rated lifespan of 20,000 h means fewer bulb changes.

Specifications

Light

Light output170 lm
Colour temperature2600 K warm white
Colour renderingCRI >80

Electrical

Supply voltage10–32 V DC
Power consumption2 W
Current at 12 Vapprox. 0.17 A
Current at 24 Vapprox. 0.08 A
DriverIntegrated

Mechanical

Ingress protectionIP65
LED lifetime>20,000 h

Installation and dimensions

Fit the G4 LED into the G4 socket of the light fitting in place of the halogen bulb. The integrated driver allows direct operation on 10–32 V DC, so the same bulb works on 12 V and 24 V systems without a separate driver.

Check the space inside the fitting: the G4 LED measures 10 mm in diameter and 35 mm in length.

Frequently asked questions

Does the G4 LED work on 12 V and 24 V systems?
Yes. The integrated driver accepts 10–32 V DC, which covers both systems without a separate driver.

How much power does it use?
Power consumption is 2 W, about 0.17 A at 12 V or 0.08 A at 24 V. That is up to 80% less energy than a halogen bulb.

How bright is the light?
It gives 170 lm of warm white light.

How long does it last?
The rated lifespan is 20,000 h, which keeps bulb changes on board to a minimum.

What are the dimensions?
The G4 LED is 10 mm in diameter and 35 mm long.
