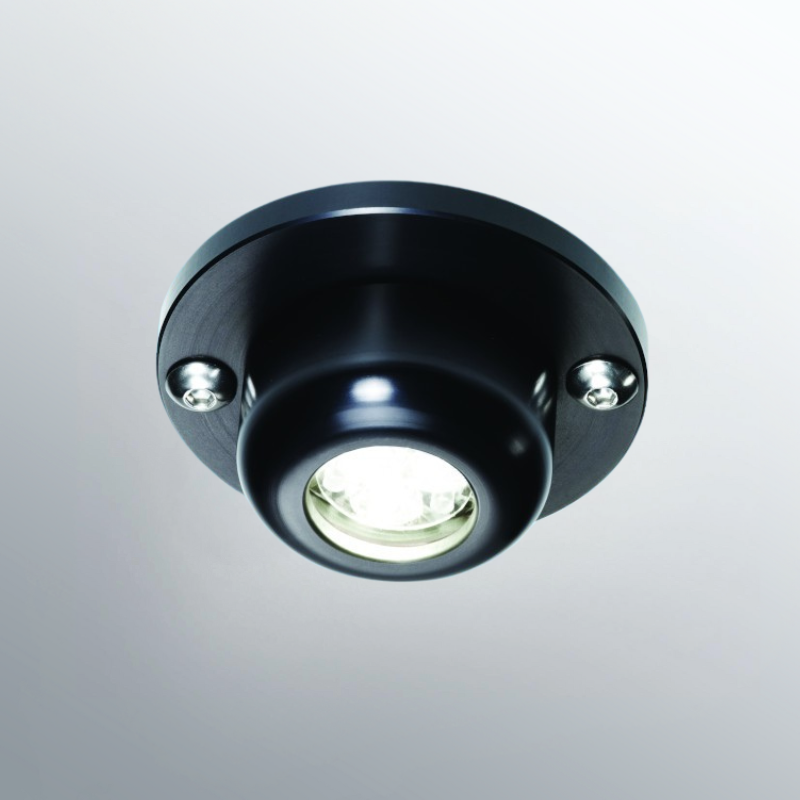

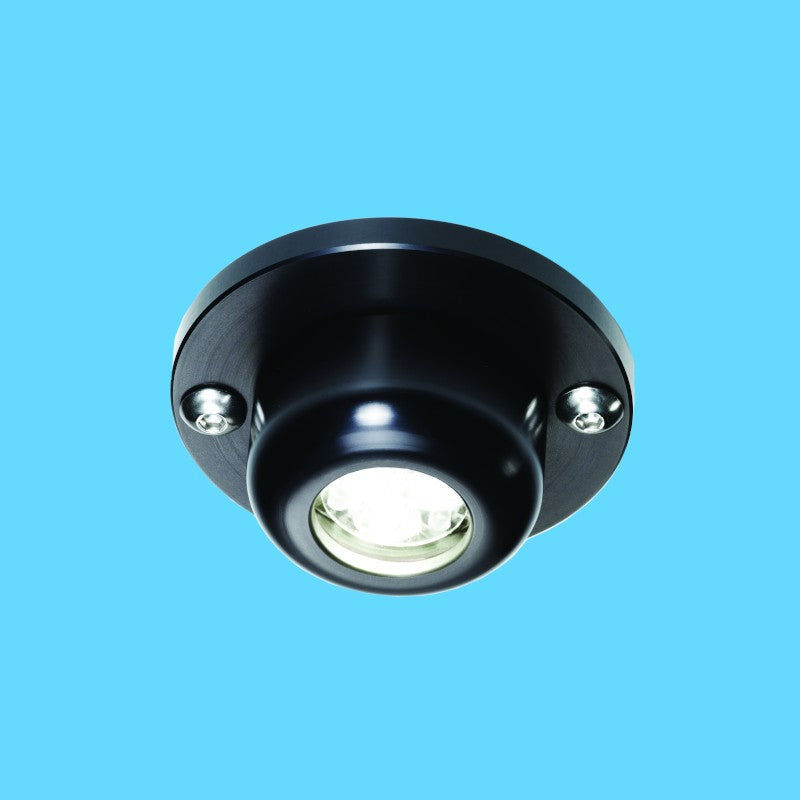

Spreader LED 6608 Black Aluminum

Premium Marine LED Spreader Light for Yachts – Two Beam Angles and Three Light Colors

The Spreader LED 6608 Black Aluminum Series is a high-performance marine LED spreader light designed for larger yachts and demanding marine applications. Combining focused illumination, low power consumption and a sophisticated black anodized aluminum design, it provides an efficient lighting solution for spreader, mast and deck areas.

The circular housing is made from high-quality turned aluminum with a sleek black anodized finish and is designed for discreet installation beneath flat spreaders. Its compact and modern appearance blends harmoniously with the aesthetics of contemporary yachts.

The Spreader LED 6608 is available in two dedicated beam configurations: a focused 16° light cone and a wider 16 × 43° light cone. These are two independent beam options, allowing the appropriate light distribution to be selected according to the required illumination area.

The 16 × 43° version provides a wider, elongated light distribution and can illuminate an area of approximately 2 × 5 meters.

Both beam configurations are available in three light colors: 4000K white, 2700K warm white and blue.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6608 combines efficient marine illumination with reliable long-term performance.

Available Beam Versions

Spreader LED 6608 – 16° Light Cone

The 16° version features a focused light cone for precise and concentrated illumination.

The narrow beam is ideal when light needs to be directed specifically onto defined deck or exterior areas without unnecessarily illuminating the surrounding environment.

Available light colors:

• White – 4000K
• Warm White – 2700K
• Blue

Spreader LED 6608 – 16 × 43° Light Cone

The 16 × 43° version provides a wider and more elongated light distribution and can illuminate an area of approximately 2 × 5 meters.

This beam geometry is particularly suitable when a larger deck or exterior area needs to be illuminated efficiently while maintaining controlled light distribution.

Available light colors:

• White – 4000K
• Warm White – 2700K
• Blue

The 16 × 43° version is an independent beam configuration and is not a Port or Starboard specific version.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader, mast and deck lighting where excellent visibility and natural color rendering are required.

White light is particularly suitable for practical onboard applications where clear illumination of deck areas, equipment and surroundings is the priority.

Both the 16° and 16 × 43° beam versions are available with 4000K white illumination.

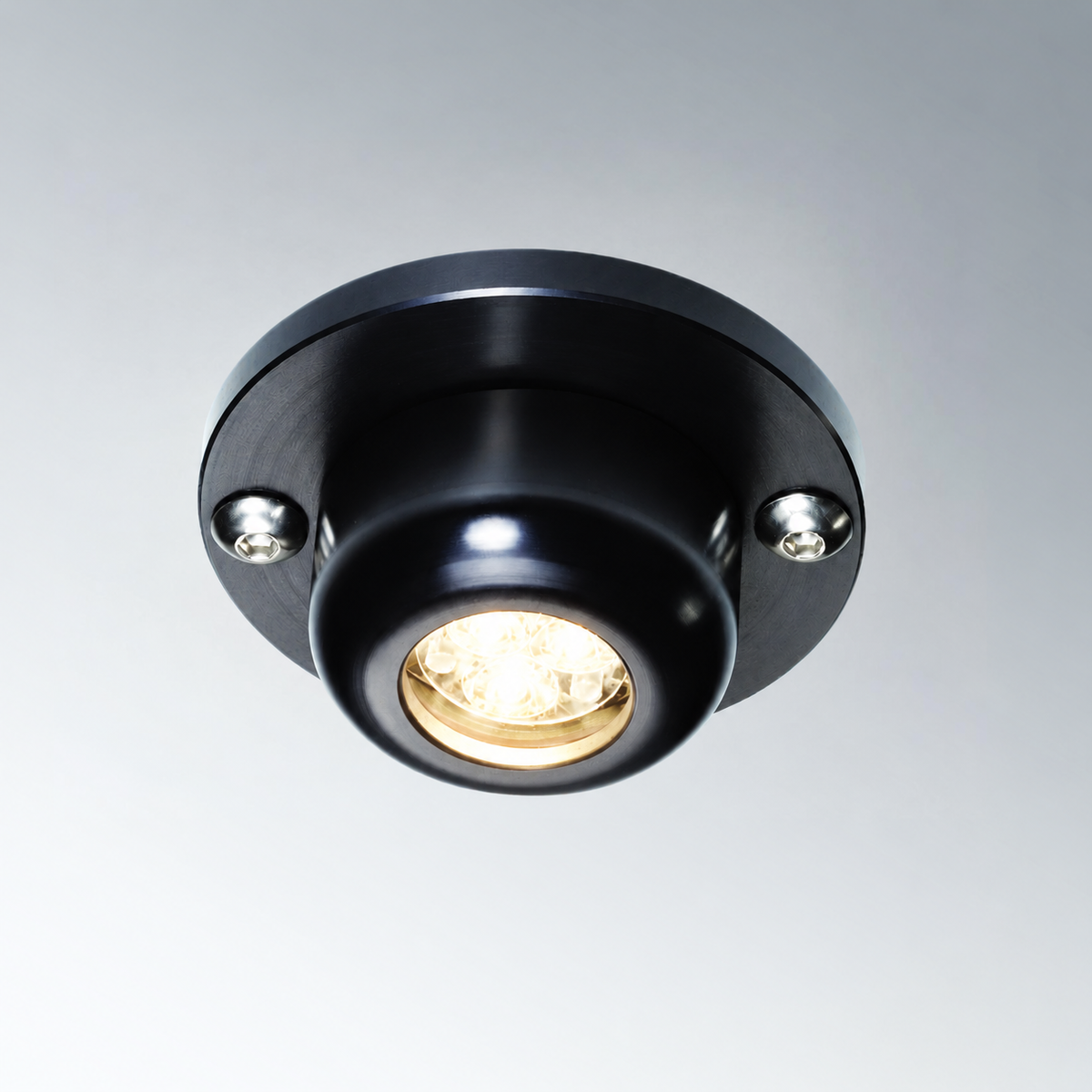

Warm White Light – 2700K

The 2700K warm white version creates a softer and more atmospheric lighting effect while maintaining functional exterior illumination.

Warm white light is particularly suitable for luxury yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

The softer color temperature creates an elegant nighttime atmosphere and supports a consistent lighting concept throughout the yacht.

Both the 16° and 16 × 43° beam versions are available with 2700K warm white illumination.

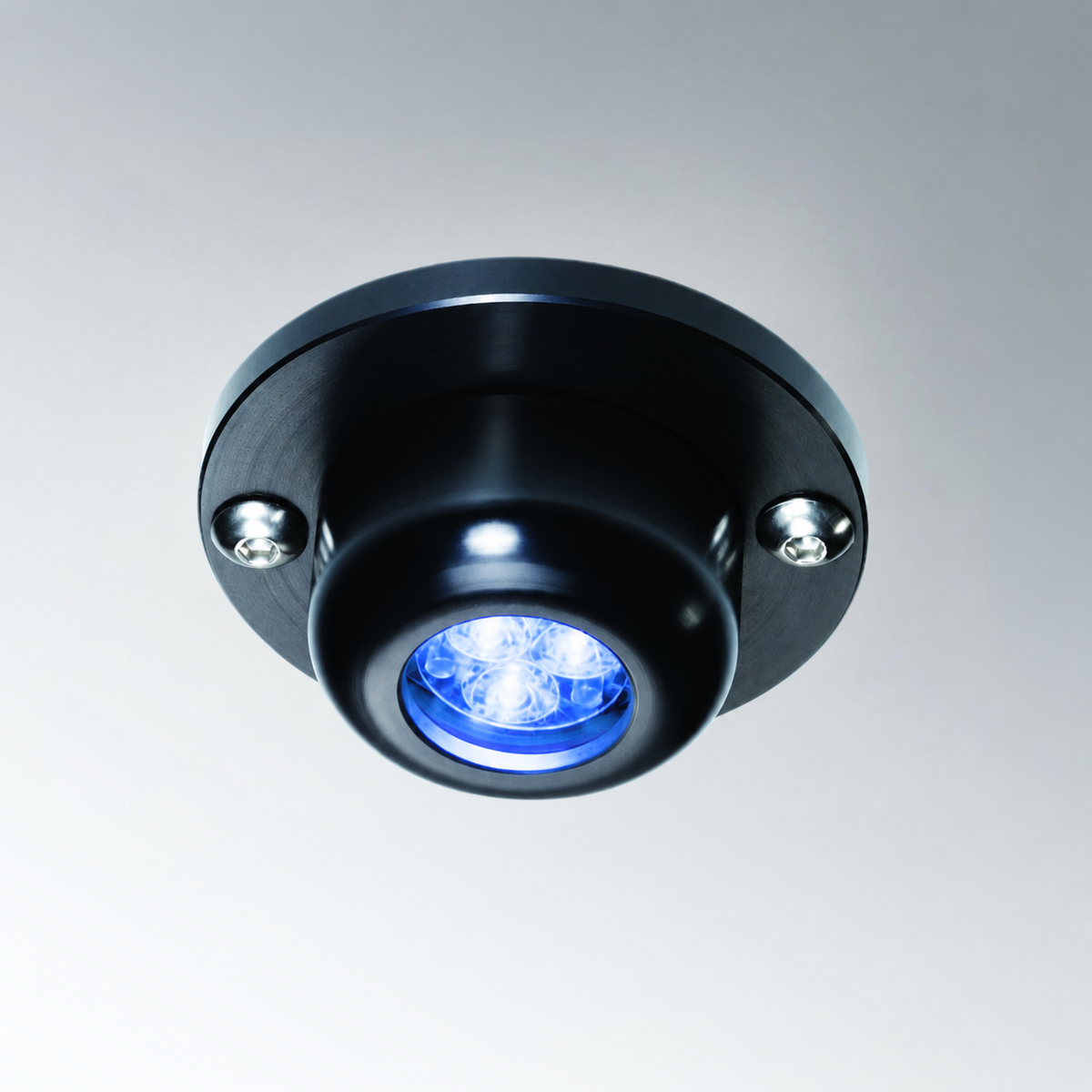

Blue Light

The blue light version provides atmospheric accent illumination for sophisticated yacht exteriors.

Blue illumination creates a distinctive nighttime appearance and can be used to highlight spreader, mast and deck areas while adding an elegant visual accent to the yacht.

Both the 16° and 16 × 43° beam versions are available with blue illumination.

The combination of three light colors and two beam configurations gives yacht owners, shipyards and designers additional flexibility when planning individual marine lighting concepts.

Key Features

• High-performance marine LED spreader light for larger yachts
• Circular housing made from high-quality turned aluminum
• Sleek black anodized finish
• Designed for discreet installation beneath flat spreaders
• Two dedicated beam configurations: 16° and 16 × 43°
• No separate Port or Starboard versions
• 16 × 43° beam illuminates an area of approximately 2 × 5 m
• Both beam versions available in 4000K white
• Both beam versions available in 2700K warm white
• Both beam versions available with blue illumination
• CRI >85 with 4000K white light
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• PWM dimmable for adjustable light intensity
• LED lifetime of more than 40,000 hours
• IP67 protection for demanding marine environments
• 2000 mm connection cable
• Installation with M5 AISI 316 stainless steel screws
• Fixing screws not included

Beam Options

The Spreader LED 6608 Black Aluminum Series is available with two different beam geometries to accommodate different yacht lighting requirements.

16° Light Cone

The focused 16° beam provides concentrated illumination for defined areas. It is particularly suitable where precise light distribution is required.

16 × 43° Light Cone

The wider 16 × 43° beam provides a broader and more elongated light distribution. With an illuminated area of approximately 2 × 5 meters, this version is particularly suitable for efficiently illuminating larger deck and exterior areas.

The 16 × 43° beam is not divided into separate Port and Starboard versions. It is one dedicated beam configuration.

Both beam geometries are available with white, warm white or blue illumination.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6608 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver supports both 12V and 24V DC electrical systems, making the fixture suitable for a wide range of yacht installations.

The Spreader LED 6608 is also compatible with PWM dimmers, allowing the brightness to be adjusted according to the required function or desired onboard atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

With an IP67 protection rating, the Spreader LED 6608 is designed for reliable operation in exposed marine environments and provides a high level of protection against dust and water.

The turned aluminum housing with its black anodized finish combines durability with a discreet, sophisticated appearance. Together with its low energy consumption and LED lifetime of more than 40,000 hours, the Spreader LED 6608 provides a reliable lighting solution for yacht new builds, refits and lighting upgrades.

Its black finish is particularly well suited to modern yacht designs and dark exterior components, allowing the fixture to integrate discreetly into the overall appearance of the yacht.

Technical Specifications

Product: Spreader LED 6608 Black Aluminum Series
Product type: Marine LED spreader light
Material: Turned aluminum
Housing: Circular
Finish: Black anodized
Application: Spreader, mast and deck lighting for yachts
Installation: Designed for flat spreaders
Beam options: 16° / 16 × 43°
Illuminated area with 16 × 43° beam: approx. 2 × 5 m
Port / Starboard versions: No
Light colors: 4000K white / 2700K warm white / blue
Color rendering: CRI >85 with 4000K white
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2000 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6608 Black Aluminum Series combines flexible beam selection, three light colors and efficient marine LED technology with a sophisticated black anodized finish for professional yacht installations.

• two clearly defined beam configurations
• focused 16° light cone for precise illumination
• wider 16 × 43° light cone for broader illumination
• approximately 2 × 5 m illuminated area with the 16 × 43° version
• no separate Port or Starboard versions required
• 4000K white for clear functional lighting
• 2700K warm white for an elegant and atmospheric appearance
• blue light for sophisticated nighttime accent illumination
• all three light colors available with both beam configurations
• black anodized aluminum for a discreet, premium appearance
• only 3.6W power consumption
• compatible with 12V and 24V DC yacht electrical systems
• PWM dimmable for flexible lighting control
• IP67 protection for exposed marine applications
• more than 40,000 hours LED lifetime
• ideal for yacht new builds, refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6608 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TIKAL TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to the screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6608 used for?

The Spreader LED 6608 is a marine LED spreader light designed for larger yachts. It provides efficient and controlled exterior illumination for spreader, mast and deck areas and is designed for discreet installation beneath flat spreaders.

Which beam angles are available for the Spreader LED 6608?

The Spreader LED 6608 is available with two beam configurations: a focused 16° light cone and a wider 16 × 43° light cone.

What area does the 16 × 43° Spreader LED 6608 illuminate?

The 16 × 43° version provides a wider and elongated light distribution and can illuminate an area of approximately 2 × 5 meters.

Does the Spreader LED 6608 have separate Port and Starboard versions?

No. The Spreader LED 6608 does not require separate Port and Starboard versions. The 16° and 16 × 43° versions are two independent beam configurations.

Which light colors are available for the Spreader LED 6608?

The Spreader LED 6608 is available in 4000K white, 2700K warm white and blue. All three light colors are available for both the 16° and 16 × 43° beam configurations.

Is the Spreader LED 6608 available with warm white light?

Yes. Both beam configurations are available with 2700K warm white illumination. The warm white version creates a softer and more atmospheric lighting effect for yacht exteriors.

Is the Spreader LED 6608 available with blue light?

Yes. Both the 16° and 16 × 43° versions are available with blue illumination. Blue light is particularly suitable for atmospheric and decorative yacht exterior lighting at night.

What is the difference between the 16° and 16 × 43° versions?

The 16° version produces a narrow, focused light cone for precise illumination. The 16 × 43° version provides a wider and more elongated light distribution and can illuminate an area of approximately 2 × 5 meters.

Is the Spreader LED 6608 suitable for exposed marine areas?

Yes. The Spreader LED 6608 has an IP67 protection rating and is designed for demanding yacht and marine environments.

Can the Spreader LED 6608 be dimmed?

Yes. The Spreader LED 6608 is PWM dimmable, allowing the brightness to be adjusted according to different onboard lighting requirements. A compatible PWM dimmer is not included.

Is the Spreader LED 6608 compatible with 12V and 24V yachts?

Yes. The integrated driver supports both 12V and 24V DC electrical systems, making the Spreader LED 6608 suitable for a wide range of yacht installations.
