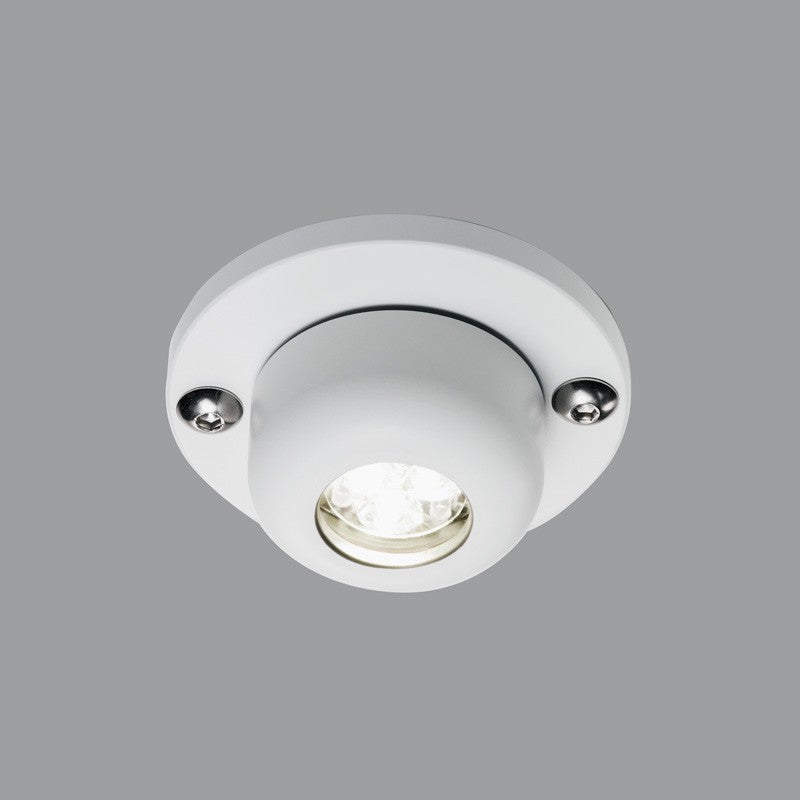

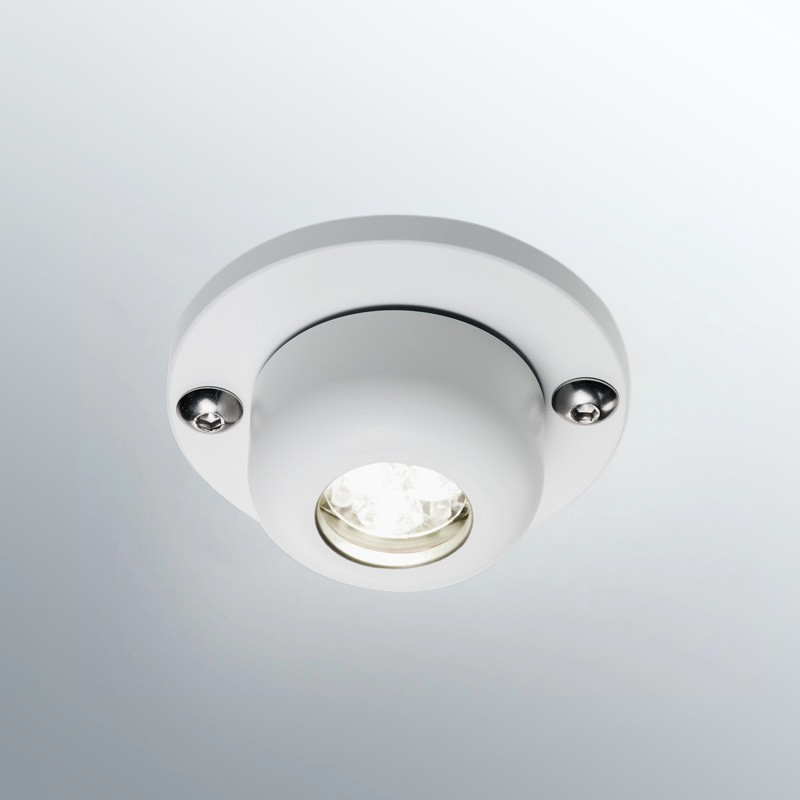

Spreader LED 6600 White Aluminum Series

Premium Marine LED Spreader Light for Yachts – Two Beam Angles and Three Light Colors

The Spreader LED 6600 White Aluminum Series is a high-performance marine LED spreader light designed for larger yachts and demanding marine applications. Combining focused illumination, low power consumption and a refined white aluminum design, it provides an efficient lighting solution for spreader, mast and deck areas.

The housing is made from high-quality aluminum with a white finish. Its compact and modern design creates a discreet, premium appearance that blends harmoniously with the aesthetics of modern yachts.

The Spreader LED 6600 is available in two dedicated beam configurations: a focused 16° light cone and a wider 16 × 43° light cone. Unlike Port and Starboard specific spreader lights, these are two independent beam options, allowing the appropriate light distribution to be selected according to the required illumination area.

Both beam configurations are available in three light colors: 4000K white, 2700K warm white and blue.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6600 combines efficient marine illumination with long-lasting performance.

Available Beam Versions

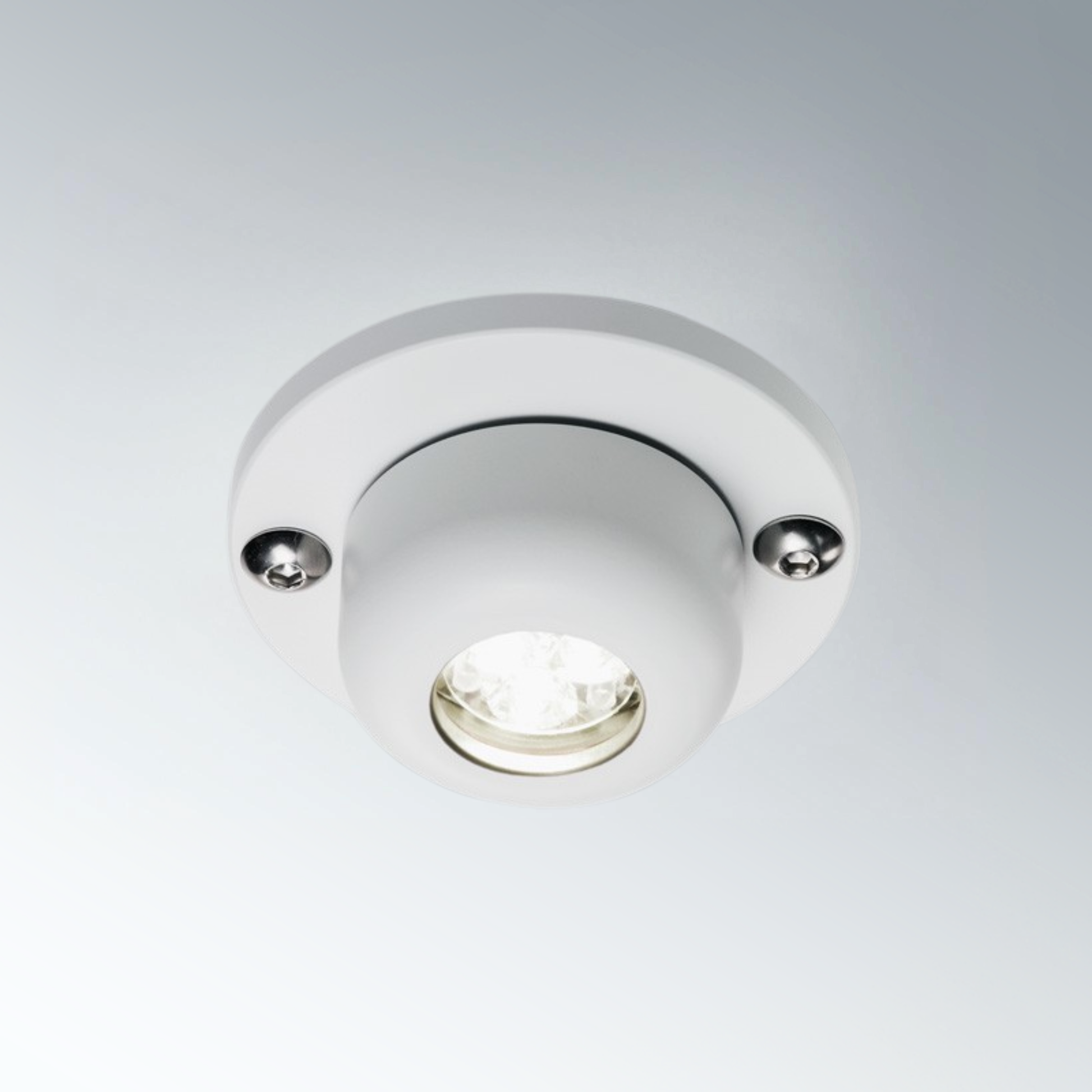

Spreader LED 6600-02WH 16 – 16° Light Cone

The 6600-02WH 16 features a focused 16° light cone for precise and concentrated illumination.

This narrow beam is ideal when light needs to be directed specifically onto defined deck or exterior areas without unnecessarily illuminating the surrounding environment.

Available light colors:

• White – 4000K
• Warm White – 2700K
• Blue

Spreader LED 6600-02WH 16x43 – 16 × 43° Light Cone

The 6600-02WH 16x43 features a wider 16 × 43° light cone for broader and more elongated illumination.

This beam geometry is particularly suitable when a larger deck or exterior area needs to be illuminated while maintaining controlled and efficient light distribution.

Available light colors:

• White – 4000K
• Warm White – 2700K
• Blue

The 16 × 43° version is an independent beam configuration and is not a Port or Starboard specific version.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader, mast and deck lighting where excellent visibility and natural color rendering are required.

White light is particularly suitable for practical onboard applications where clear illumination of deck areas, equipment and surroundings is the priority.

Both the 16° and 16 × 43° beam versions are available with 4000K white illumination.

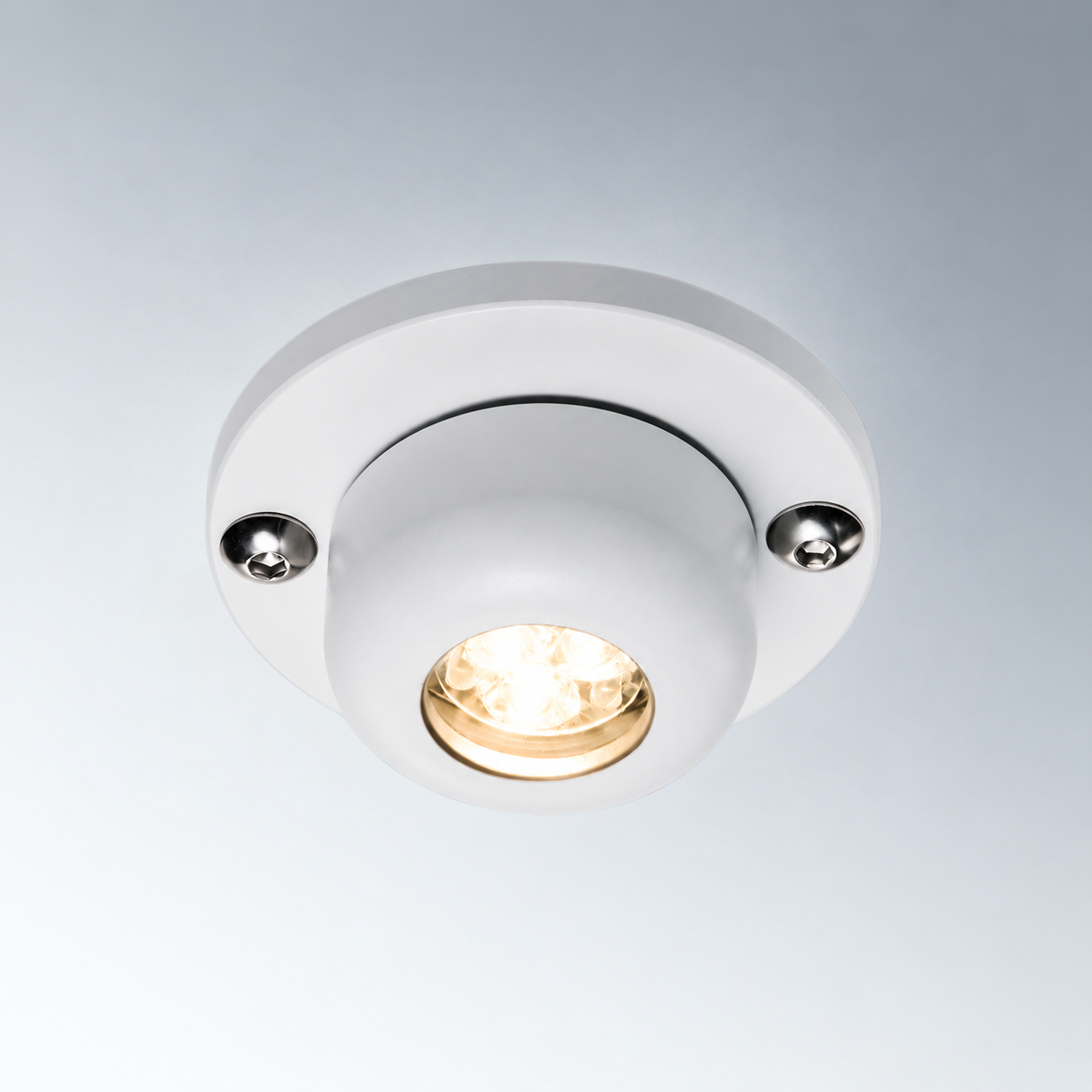

Warm White Light – 2700K

The 2700K warm white version creates a softer and more atmospheric lighting effect while maintaining functional exterior illumination.

Warm white light is particularly suitable for luxury yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

The softer color temperature creates an elegant nighttime atmosphere and supports a consistent lighting concept throughout the yacht.

Both the 16° and 16 × 43° beam versions are available with 2700K warm white illumination.

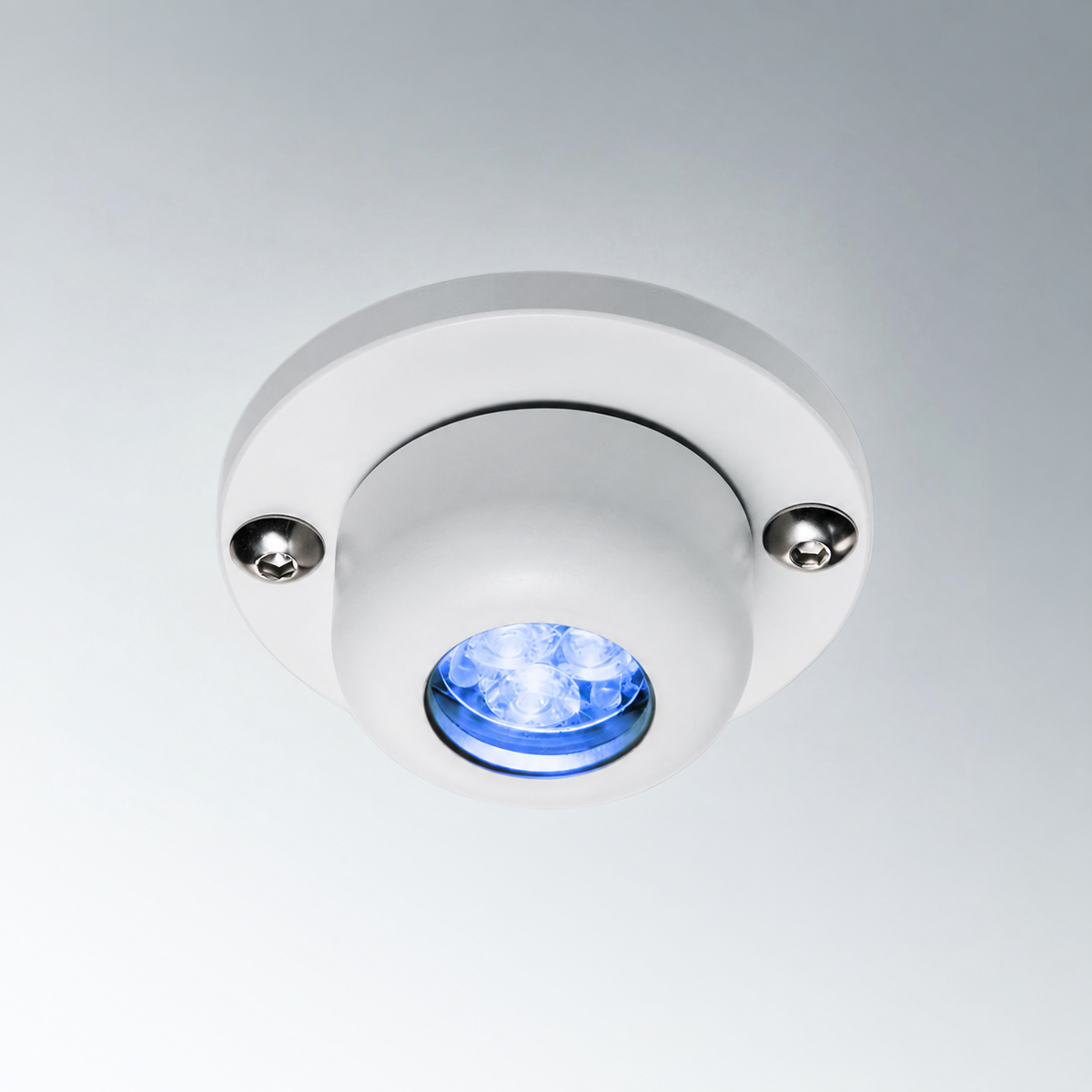

Blue Light

The blue light version provides atmospheric accent illumination for sophisticated yacht exteriors.

Blue illumination creates a distinctive nighttime appearance and can be used to highlight spreader, mast and deck areas while adding an elegant visual accent to the yacht.

Both the 16° and 16 × 43° beam versions are available with blue illumination.

This combination of three light colors and two beam configurations gives yacht owners, shipyards and designers additional flexibility when planning individual marine lighting concepts.

Key Features

• High-performance marine LED spreader light for larger yachts
• Two dedicated beam configurations: 16° and 16 × 43°
• No Port or Starboard specific versions
• 6600-02WH 16 with focused 16° light cone
• 6600-02WH 16x43 with wider 16 × 43° light cone
• Both beam versions available in 4000K white
• Both beam versions available in 2700K warm white
• Both beam versions available with blue illumination
• 4000K white light with CRI >85
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• PWM dimmable for adjustable light intensity
• LED lifetime of more than 40,000 hours
• IP67 protection for demanding marine environments
• 2000 mm connection cable
• Installation with M5 AISI 316 stainless steel screws
• Fixing screws not included

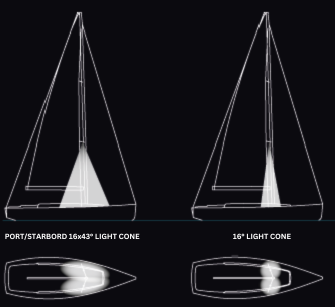

Beam Options

The Spreader LED 6600 Series is available with two different light cone geometries to accommodate different yacht lighting requirements.

16° Light Cone

The focused 16° beam provides concentrated illumination for defined areas. It is particularly suitable where precise light distribution is required.

Product version: 6600-02WH 16

16 × 43° Light Cone

The wider 16 × 43° beam provides a broader and more elongated light distribution. It is designed for applications where a larger area needs to be illuminated efficiently.

Product version: 6600-02WH 16x43

The 16 × 43° beam is not divided into separate Port and Starboard versions. It is one dedicated beam configuration.

Both beam geometries can be combined with white, warm white or blue illumination.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6600 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver supports both 12V and 24V DC electrical systems, making the fixture suitable for a wide range of yacht installations.

The Spreader LED 6600 is also compatible with PWM dimmers, allowing the brightness to be adjusted according to the required function or desired onboard atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

With an IP67 protection rating, the Spreader LED 6600 is designed for reliable operation in exposed marine environments and provides a high level of protection against dust and water.

Its durable aluminum construction, low energy consumption and LED lifetime of more than 40,000 hours make it a reliable lighting solution for yacht new builds, refits and lighting upgrades.

The white finish and compact design allow the fixture to integrate discreetly into modern yacht exteriors while providing powerful and controlled illumination.

Technical Specifications

Product: Spreader LED 6600 White Aluminum Series
Product type: Marine LED spreader light
Material: Aluminum
Finish: White
Application: Spreader, mast and deck lighting for yachts
Available versions: 6600-02WH 16 / 6600-02WH 16x43
Beam options: 16° / 16 × 43°
Port / Starboard versions: No
Light colors: 4000K white / 2700K warm white / blue
Color rendering: CRI >85 for 4000K white
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2000 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6600 White Aluminum Series combines flexible beam selection, three light colors and efficient marine LED technology for professional yacht lighting installations.

• two clearly defined beam configurations
• focused 16° light cone for precise illumination
• wider 16 × 43° light cone for broader illumination
• no Port or Starboard specific installation required
• 4000K white for clear functional lighting
• 2700K warm white for an elegant and atmospheric appearance
• blue light for sophisticated nighttime accent illumination
• all three light colors available with both beam configurations
• only 3.6W power consumption
• compatible with 12V and 24V DC yacht electrical systems
• PWM dimmable for flexible lighting control
• IP67 protection for exposed marine applications
• more than 40,000 hours LED lifetime
• ideal for yacht new builds, refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6600 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TIKAL TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to the screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6600 used for?

The Spreader LED 6600 is a marine LED spreader light designed for yacht exterior lighting. It provides efficient and controlled illumination for spreader, mast and deck areas and is particularly suitable for larger yachts.

Which beam angles are available for the Spreader LED 6600?

The Spreader LED 6600 is available in two beam configurations: the 6600-02WH 16 with a focused 16° light cone and the 6600-02WH 16x43 with a wider 16 × 43° light cone.

Does the Spreader LED 6600 have separate Port and Starboard versions?

No. The Spreader LED 6600 does not use separate Port and Starboard versions. The 16° and 16 × 43° versions are two independent beam configurations.

Which light colors are available for the Spreader LED 6600?

The Spreader LED 6600 is available in 4000K white, 2700K warm white and blue. All three light colors are available for both the 16° and 16 × 43° beam configurations.

Is the Spreader LED 6600 available with warm white light?

Yes. Both beam configurations are available with 2700K warm white illumination. The warm white version provides a softer and more atmospheric lighting effect for yacht exteriors.

Is the Spreader LED 6600 available with blue light?

Yes. Both the 16° and 16 × 43° versions are available with blue illumination. Blue light is particularly suitable for atmospheric and decorative yacht exterior lighting at night.

What is the difference between the 16° and 16 × 43° Spreader LED 6600?

The 16° version produces a narrower, focused light cone for precise illumination. The 16 × 43° version provides a wider and more elongated light distribution for illuminating a broader area.

Is the Spreader LED 6600 suitable for exposed marine areas?

Yes. The Spreader LED 6600 has an IP67 protection rating and is designed for demanding marine environments.

Can the Spreader LED 6600 be dimmed?

Yes. The Spreader LED 6600 is PWM dimmable, allowing the brightness to be adjusted according to different onboard lighting requirements. A compatible PWM dimmer is not included.

Is the Spreader LED 6600 compatible with 12V and 24V yachts?

Yes. The integrated driver supports both 12V and 24V DC electrical systems, making the Spreader LED 6600 suitable for a wide range of yacht installations.
