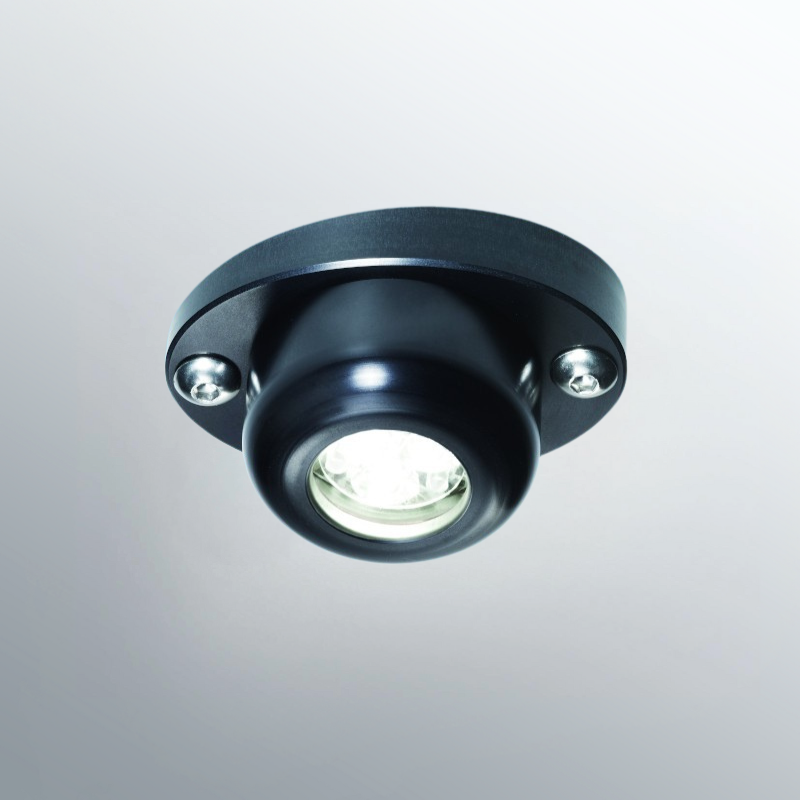

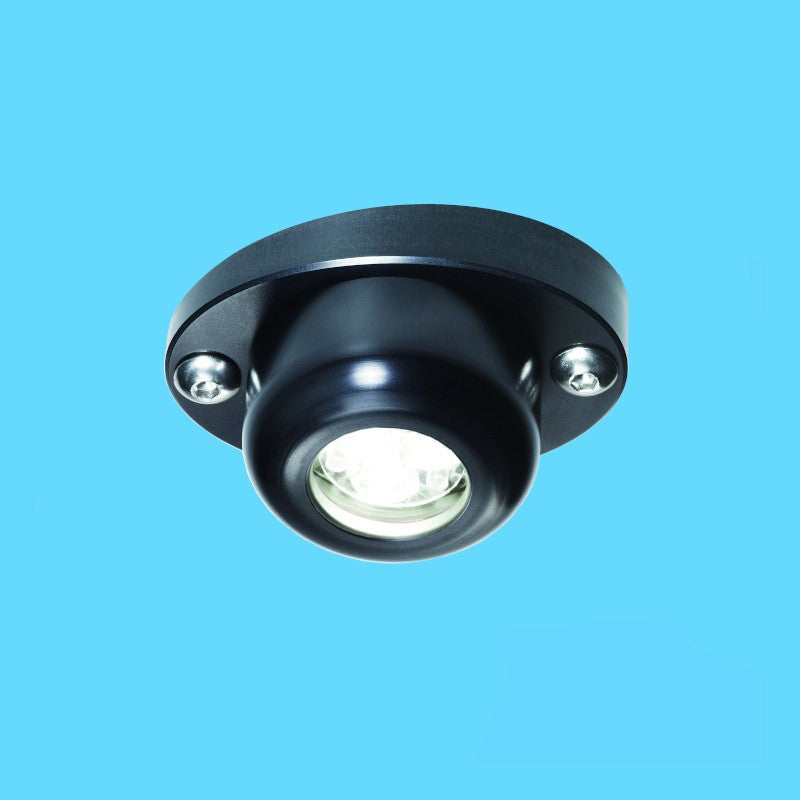

Spreader LED 6518 Black Aluminum Series

Premium Marine LED Spreader Light for Larger Yachts – Multiple Light and Beam Options

The Spreader LED 6518 Black Aluminum Series is a high-performance marine LED spreader light developed for larger yachts and demanding marine applications. Designed for use with the R500 spreader profile, it combines focused illumination, low power consumption and a sophisticated marine design.

The housing is made from high-quality precision-turned aluminum with a black anodized finish. Its compact and modern appearance blends discreetly with the aesthetics of contemporary yachts.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6518 provides reliable and energy-efficient exterior illumination.

Different beam and light color configurations are available to meet specific onboard lighting requirements. In addition to 4000K white illumination, selected configurations are available with atmospheric 2700K warm white or blue light. Further configurations can also be manufactured with blue illumination on request, subject to technical feasibility.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader, mast and deck lighting where excellent visibility and natural color rendering are required.

Combined with the focused beam geometry of the Spreader LED 6518, the 4000K version provides precise illumination for larger yacht installations while maintaining low onboard power consumption.

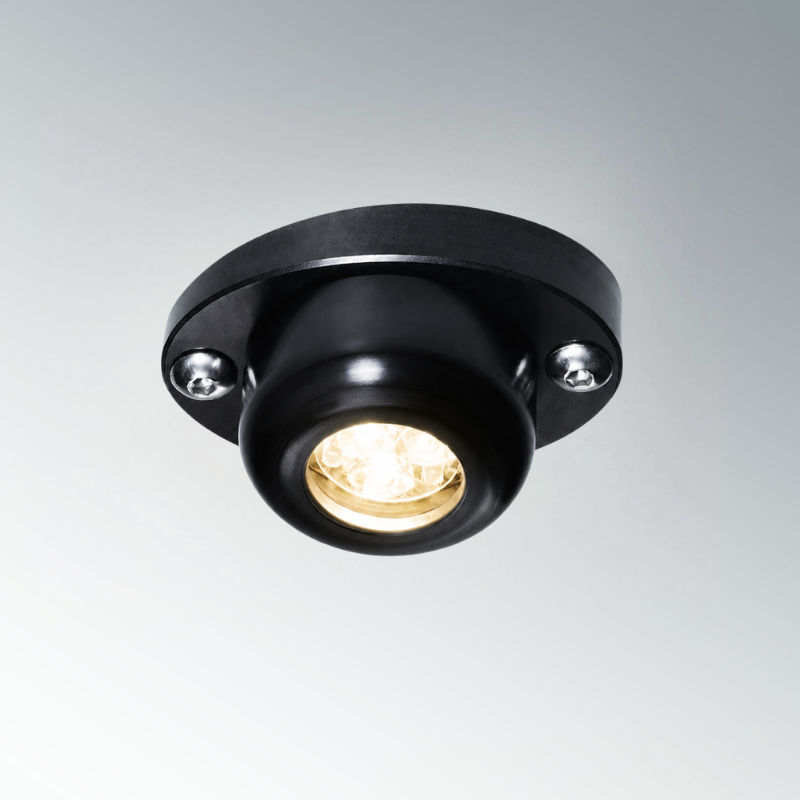

Warm White Light – 2700K

Selected Spreader LED 6518 configurations are also available with 2700K warm white illumination.

The softer warm white light creates an elegant and comfortable atmosphere and is particularly suitable for yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

This makes the 2700K version an attractive option when functional exterior lighting and a refined nighttime ambience are equally important.

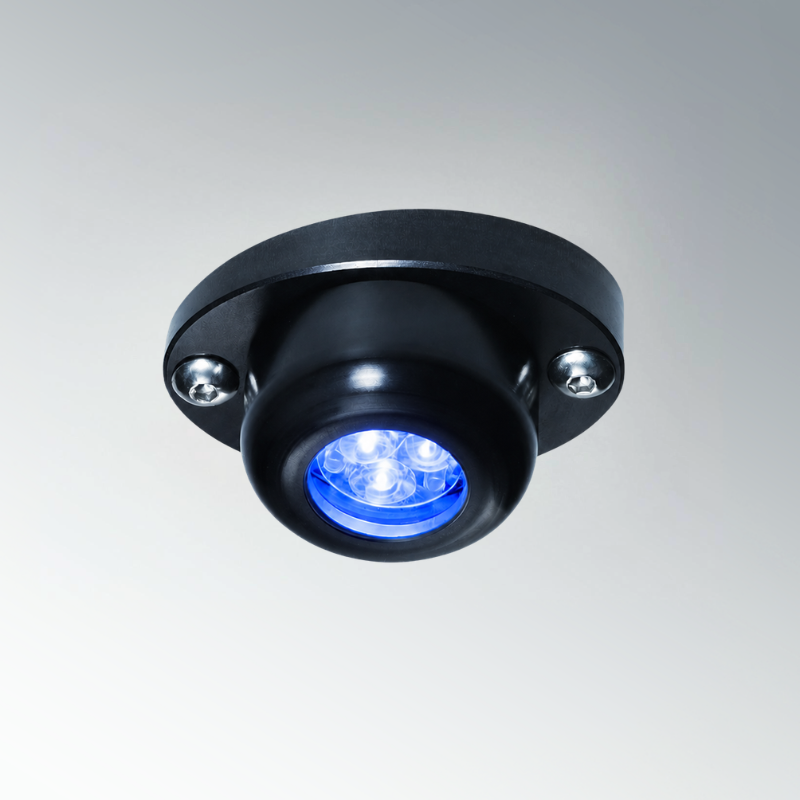

Blue Light

Selected Spreader LED 6518 configurations are available with blue LED illumination for atmospheric yacht exterior lighting.

Blue light creates a distinctive nighttime appearance and is ideal for sophisticated accent lighting around spreaders, mast and deck areas.

If blue illumination is required for another Spreader LED version or beam configuration, please contact us. As a manufacturer of marine lighting, we can produce selected Spreader LED configurations with blue illumination on request in our manufactory, subject to technical feasibility.

This provides yacht owners, shipyards and designers with additional flexibility when planning individual marine and yacht lighting concepts.

Key Features

• High-performance marine LED spreader light for larger yachts
• Designed for the R500 spreader profile
• Precision-turned aluminum housing
• Sophisticated black anodized finish
• Different light color and beam configurations available
• 4000K white light with CRI >85
• 2700K warm white available for selected configurations
• Blue illumination available for selected configurations
• Additional blue light configurations can be manufactured on request
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• LED lifetime of more than 40,000 hours
• PWM dimmable for adjustable light intensity
• IP67 protection for demanding marine environments
• 2400 mm cable for flexible installation
• Installation with M5 AISI 316 stainless steel screws

Beam Options and Illumination

The Spreader LED 6518 offers focused beam configurations developed for efficient illumination on larger yachts.

Light cone: 16°
Illuminated area: approximately Ø 2 m

Port / Starboard beam: 16 × 43°
Illuminated area: approximately 2 × 5 m

The focused beam geometry directs the light precisely onto the required area, making the Spreader LED 6518 particularly suitable for targeted spreader and deck illumination.

Different beam configurations provide flexibility for specific installation requirements while avoiding unnecessarily broad light distribution.

Available light colors depend on the selected beam and product configuration. For individual requirements or blue illumination in another configuration, please contact us to discuss the available manufacturing options.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6518 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver supports both 12V and 24V DC electrical systems, allowing the fixture to be integrated into a wide range of yacht installations.

For additional flexibility, the Spreader LED 6518 is compatible with PWM dimmers. The brightness can therefore be adjusted according to the required function, situation or desired onboard atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

The Spreader LED 6518 has an IP67 protection rating, providing a high level of protection against water and dust for reliable operation in exposed marine environments.

Its precision-turned aluminum construction, black anodized finish and LED lifetime of more than 40,000 hours make it a reliable lighting solution for demanding yacht installations.

Whether used for new yacht builds, refits or lighting upgrades, the Spreader LED 6518 combines efficient LED technology with a discreet appearance designed for modern marine environments.

Technical Specifications

Product: Spreader LED 6518 Black Aluminum Series
Product type: Marine LED spreader light
Material: Precision-turned aluminum
Finish: Black anodized
Application: Spreader, mast and deck lighting for larger yachts

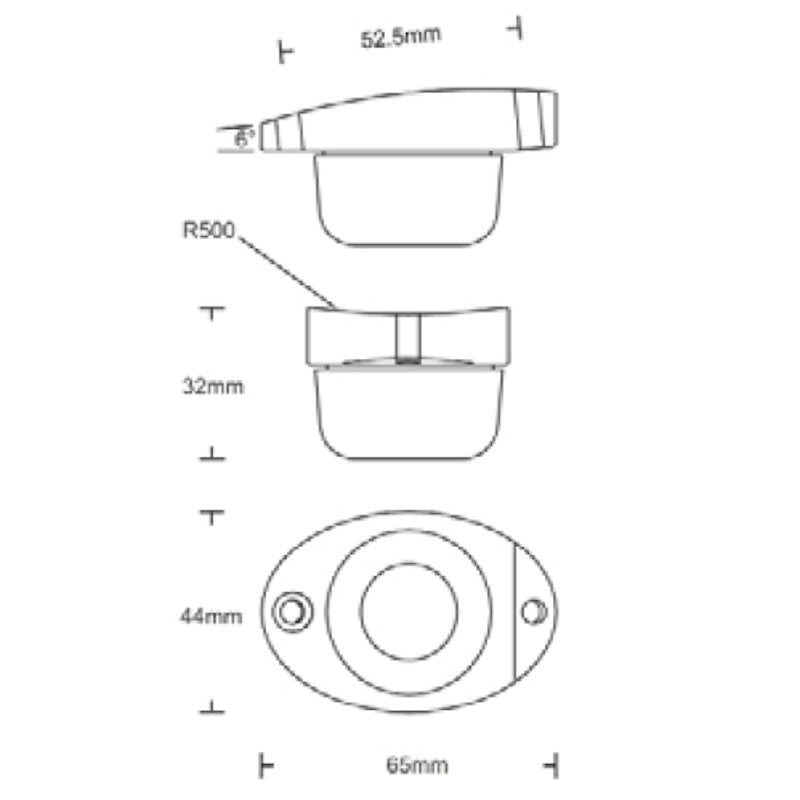

Spreader profile: R500
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Standard light color: 4000K white
Warm white option: 2700K on selected configurations
Blue light: Available for selected configurations; additional versions can be manufactured with blue illumination on request
Color rendering: CRI >85 for the 4000K version
Light cone: 16°
Illuminated area with 16° beam: approximately Ø 2 m
Port / Starboard beam: 16 × 43°
Illuminated area with Port / Starboard beam: approximately 2 × 5 m
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2400 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6518 Black Aluminum Series combines focused marine illumination, efficient LED technology and flexible light color options for professional yacht installations.

• precise illumination designed for larger yachts
• dedicated design for the R500 spreader profile
• functional 4000K white illumination
• atmospheric 2700K warm white available for selected configurations
• selected versions available with blue illumination
• additional blue configurations can be manufactured on request
• focused 16° and Port / Starboard beam configurations
• only 3.6W power consumption
• suitable for 12V and 24V yacht electrical systems
• IP67 protection for exposed marine applications
• PWM dimming for flexible lighting control
• more than 40,000 hours LED lifetime
• sophisticated black anodized aluminum design
• ideal for yacht new builds, refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6518 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6518 used for?

The Spreader LED 6518 is a marine LED spreader light designed for larger yachts. It provides focused exterior illumination for spreader, mast and deck areas and is designed for use with the R500 spreader profile.

What beam options are available for the Spreader LED 6518?

The Spreader LED 6518 is available with a focused 16° light cone illuminating an area of approximately 2 m in diameter and a 16 × 43° Port / Starboard beam illuminating an area of approximately 2 × 5 m.

Is the Spreader LED 6518 available with warm white light?

Yes. Selected configurations of the Spreader LED 6518 Series are available with 2700K warm white illumination for a softer and more atmospheric yacht lighting concept.

Is the Spreader LED 6518 available with blue light?

Yes. Selected Spreader LED 6518 configurations are available with blue illumination for atmospheric yacht exterior lighting.

If blue light is required for another Spreader LED version or beam configuration, please contact us. Selected configurations can be manufactured with blue illumination on request, subject to technical feasibility.

Can other Spreader LED configurations be manufactured with blue light?

Yes. Selected Spreader LED versions and beam configurations can be manufactured with blue illumination on request in our manufactory. Please contact us with your required configuration so that we can evaluate the technical feasibility and suitable lighting solution for your yacht project.

Is the Spreader LED 6518 suitable for exposed marine areas?

Yes. The Spreader LED 6518 has an IP67 protection rating and is designed for demanding yacht and marine environments.

Can the Spreader LED 6518 be dimmed?

Yes. The Spreader LED 6518 is PWM dimmable, allowing the brightness to be adapted to different onboard lighting requirements and atmospheres. A compatible PWM dimmer is not included.

Is the Spreader LED 6518 compatible with 12V and 24V yachts?

Yes. Its internal driver supports both 12V and 24V DC electrical systems, making it suitable for a wide range of yacht installations.
