Spreader LED 6500 White Aluminum Series

Premium Marine Spreader Light for Yachts – Multiple Light and Beam Options

The Spreader LED 6500 White Aluminum Series is a high-performance marine LED spreader light designed for larger yachts and demanding marine applications. The precisely manufactured aluminum housing with a high-quality white lacquered finish combines robust construction with an elegant maritime appearance.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6500 combines efficient illumination with reliable marine performance.

The series offers different beam and light color configurations for specific onboard lighting requirements. In addition to white and warm white illumination, the 6500-02WH 16 (BL) is available as the standard configuration with blue light. Selected additional Spreader LED configurations can also be manufactured with blue illumination on request.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader and deck lighting where excellent visibility and natural color rendering are required.

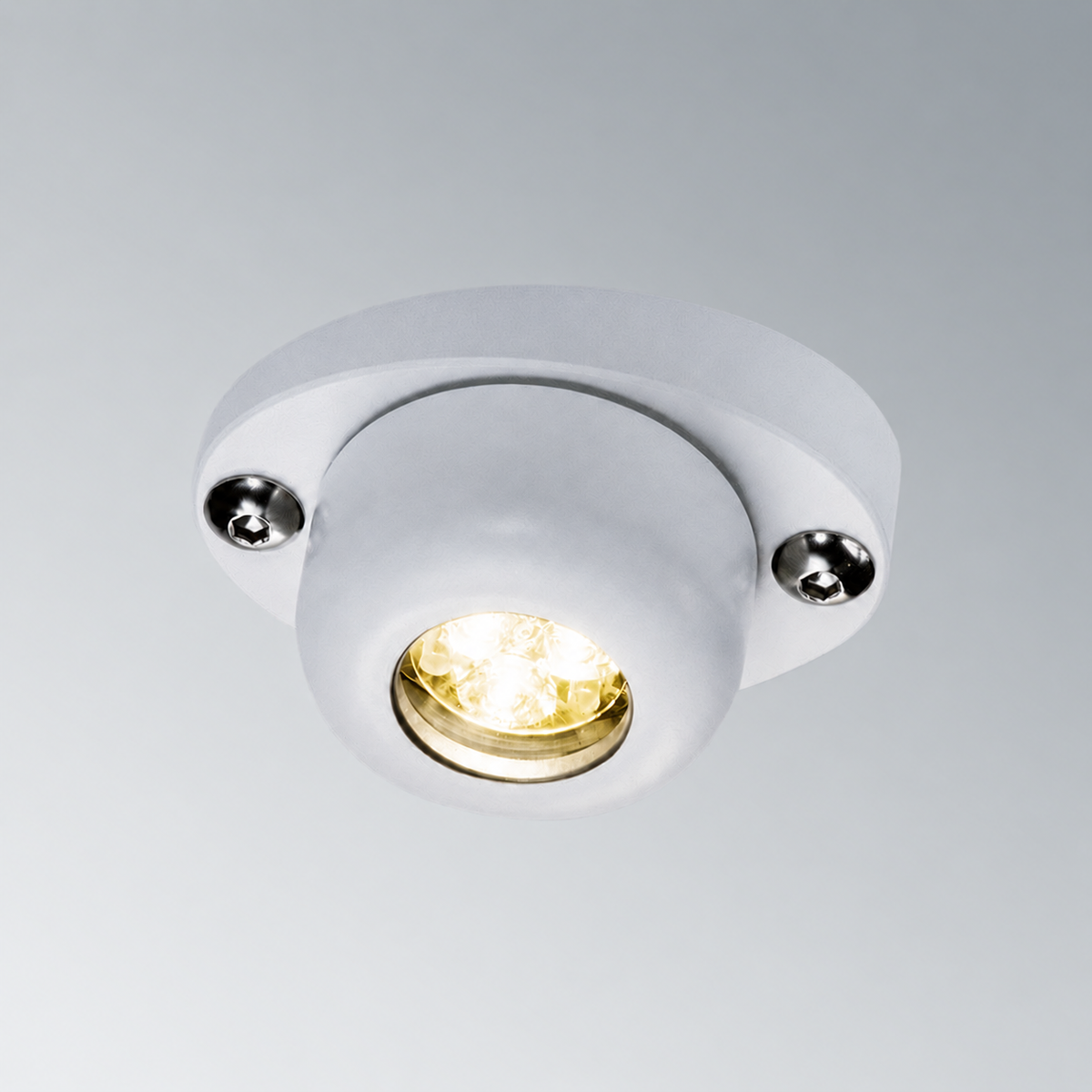

Warm White Light – 2700K

Selected Spreader LED 6500 configurations are also available with 2700K warm white illumination.

The softer warm white light creates an elegant and comfortable appearance and is particularly suitable for yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

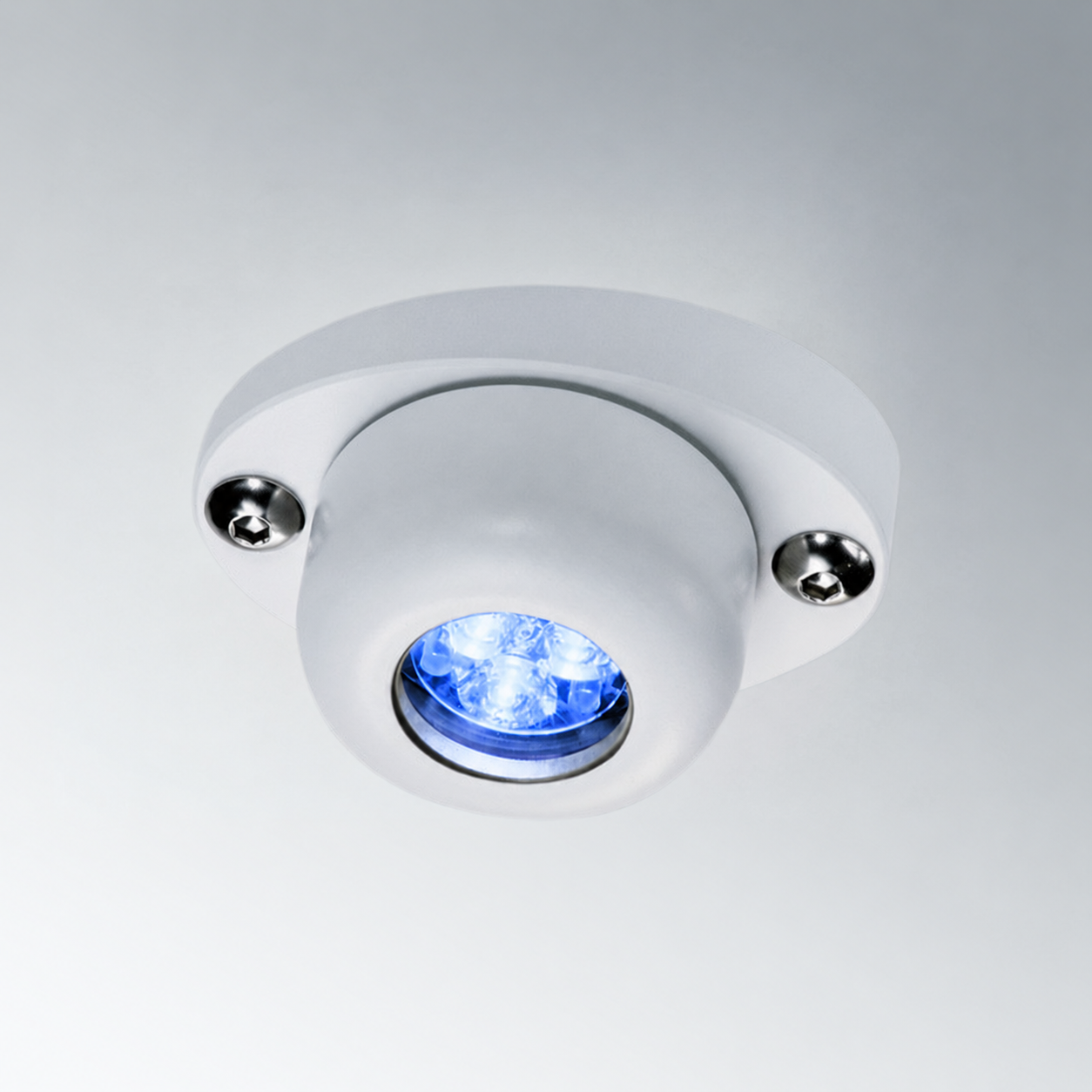

Blue Light – 6500-02WH 16 (BL)

For atmospheric yacht exterior lighting, the 6500 Series is available in a dedicated blue light version:

6500-02WH 16 (BL)

This version combines the 16° beam configuration with blue LED illumination and is ideal for creating distinctive nighttime accent lighting on modern yachts.

The 6500-02WH 16 (BL) is our standard configuration with blue illumination. If blue light is required for another Spreader LED version or beam configuration, please contact us. As a manufacturer of marine lighting, we can produce selected Spreader LED configurations with blue illumination on request in our manufactory, subject to technical feasibility.

This provides yacht owners, shipyards and designers with additional flexibility when planning individual marine and yacht lighting concepts.

Key Features

• Marine LED spreader light designed for larger yachts
• Turned aluminum housing with white lacquered finish

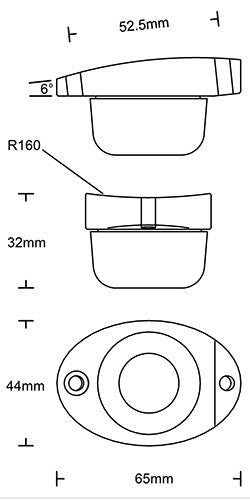

• Designed to fit R160–R200 spreader profiles
• Different light color and beam configurations available
• Dedicated blue light version: 6500-02WH 16 (BL)
• Warm white 2700K available for selected configurations
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• CRI >85 for the 4000K white version
• LED lifetime of more than 40,000 hours
• PWM dimmable for adjustable light intensity
• IP67 protection for demanding marine environments
• Supplied with 2000 mm cable
• Installation with M5 AISI 316 stainless steel screws

Beam Options

The Spreader LED 6500 Series offers dedicated beam configurations for different yacht lighting requirements.

Light cone: 16°
Port / Starboard beam: 16 × 43°

The focused beam geometry provides efficient illumination exactly where required while maintaining a discreet and integrated appearance on the yacht.

Available light colors depend on the selected beam and product configuration. For individual requirements or blue illumination in other Spreader LED configurations, please contact us to discuss the available manufacturing options.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6500 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver is designed for both 12V and 24V DC electrical systems, making the fixture suitable for a wide range of yacht installations.

For additional lighting flexibility, the Spreader LED is compatible with PWM dimmers, allowing the brightness to be adjusted according to the required function or atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

The Spreader LED 6500 has an IP67 protection rating, providing a high level of protection against water and dust for reliable operation in exposed marine environments.

Its turned aluminum construction, durable white lacquered surface and LED lifetime of more than 40,000 hours make it a robust lighting solution for new yacht builds, refits and replacement installations.

Technical Specifications

Product: Spreader LED 6500 White Aluminum Series
Product type: Marine LED spreader light
Material: Turned aluminum
Finish: White lacquered
Application: Larger yachts / R160–R200 spreader profiles
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Standard light color: 4000K white
Warm white option: 2700K on selected configurations
Blue light option: 6500-02WH 16 (BL) only
Color rendering: CRI >85 (4000K version)
Beam options: 16° / Port-Starboard 16 × 43°
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2000 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6500 White Aluminum Series combines efficient marine LED technology with dedicated beam and light configurations for professional yacht installations.

• functional white and atmospheric warm white lighting options
• dedicated 6500-02WH 16 (BL) version with blue illumination
• designed for R160–R200 yacht spreader profiles
• only 3.6W power consumption
• suitable for 12V and 24V yacht electrical systems
• IP67 protection for exposed marine applications
• PWM dimming for flexible lighting control
• more than 40,000 hours LED lifetime
• ideal for new builds, yacht refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6500 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6500 used for?

The Spreader LED 6500 is a marine LED spreader light designed for larger yachts and R160–R200 spreader profiles. It provides efficient exterior illumination with dedicated beam configurations for yacht spreader applications.

Is the Spreader LED 6500 available with warm white light?

Yes. Selected configurations of the Spreader LED 6500 Series are available with 2700K warm white illumination for a softer and more atmospheric yacht lighting concept.

Is the Spreader LED 6500 available with blue light?

Yes. The 6500-02WH 16 (BL) is the standard Spreader LED configuration available with blue illumination. If blue light is required for another Spreader LED version or beam configuration, please contact us. Selected configurations can be manufactured with blue illumination on request, subject to technical feasibility.

Can other Spreader LED versions be manufactured with blue light?

Selected Spreader LED versions and beam configurations can be manufactured with blue illumination on request. Please contact us with your required configuration so that we can evaluate the appropriate custom marine lighting solution and technical feasibility.

Is the Spreader LED 6500 suitable for exposed marine areas?

Yes. The Spreader LED 6500 has an IP67 protection rating and is designed for demanding yacht and marine environments.

Can the Spreader LED 6500 be dimmed?

Yes. The Spreader LED 6500 is PWM dimmable. A compatible PWM dimmer is not included.

Is the Spreader LED 6500 compatible with 12V and 24V yachts?

Yes. Its internal driver supports both 12V and 24V DC electrical systems, making it suitable for a wide range of yacht installations.
