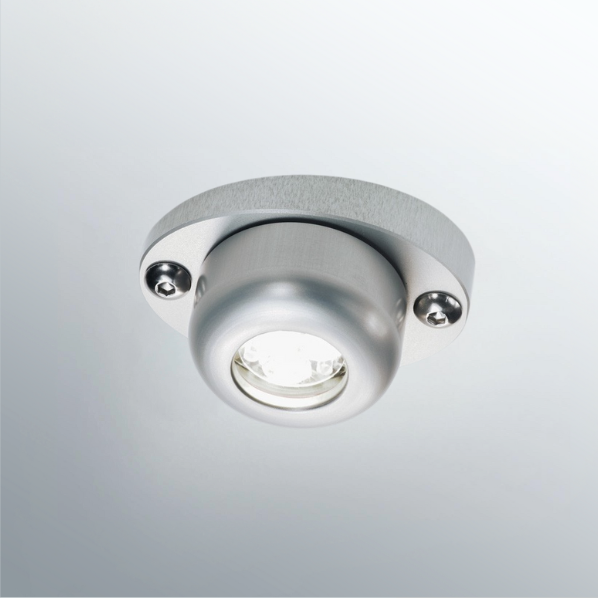

Spreader LED 6509 Titan Aluminum

Premium Marine Spreader Light for Yachts – Multiple Light and Beam Options

The Spreader LED 6509 Titan Aluminum Series is a high-performance marine LED spreader light designed for larger yachts and demanding marine applications.

The housing is made from high-quality turned aluminum with a titan anodized finish. Its compact and modern design creates a discreet, premium appearance that blends harmoniously with the aesthetics of modern yachts.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6509 combines efficient illumination with reliable marine performance.

The series offers different beam and light color configurations for specific onboard lighting requirements. In addition to 4000K white illumination, selected configurations are available with atmospheric 2700K warm white or blue light. Selected additional Spreader LED configurations can also be manufactured with blue illumination on request.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader, mast and deck lighting where excellent visibility and natural color rendering are required.

The combination of focused illumination and low power consumption makes the Spreader LED 6509 particularly suitable for professional yacht lighting applications.

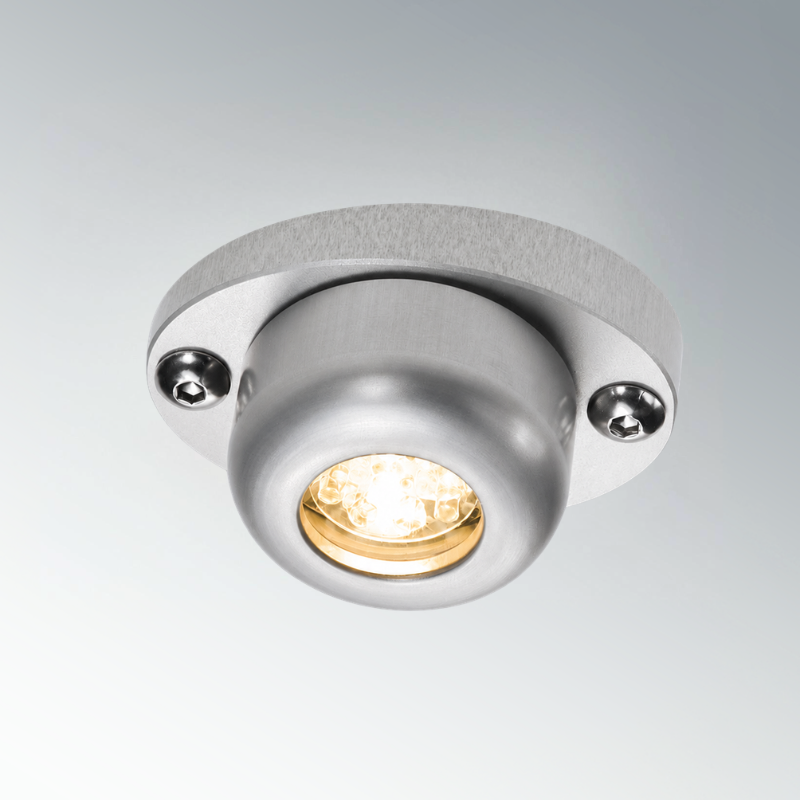

Warm White Light – 2700K

Selected Spreader LED 6509 configurations are also available with 2700K warm white illumination.

The softer warm white light creates an elegant and comfortable atmosphere and is particularly suitable for yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

The 2700K option combines functional marine illumination with a refined nighttime ambience and provides additional flexibility when designing a consistent yacht lighting concept.

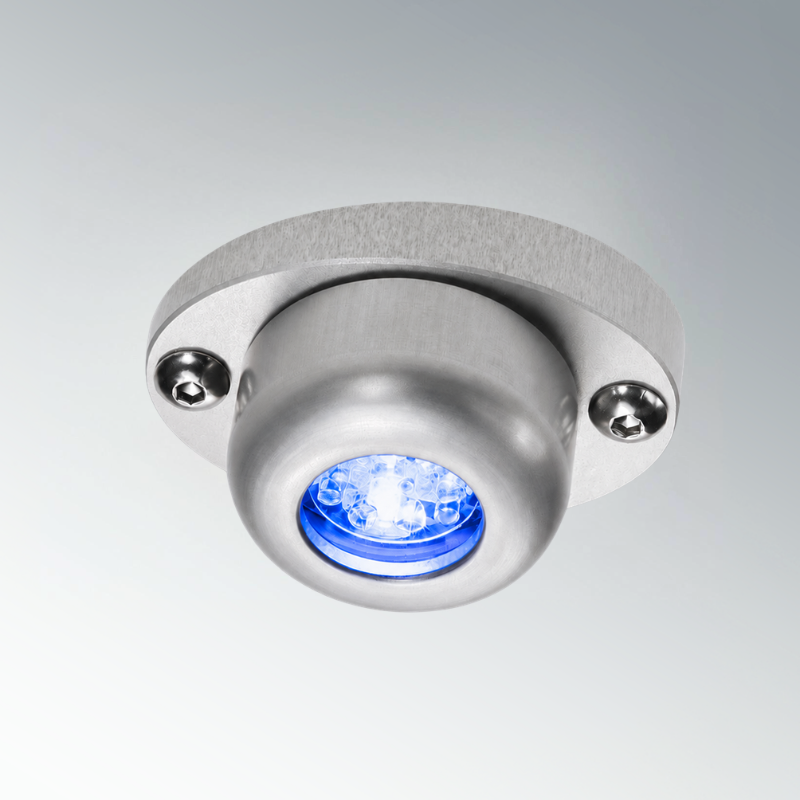

Blue Light

Selected Spreader LED 6509 configurations are available with blue LED illumination for atmospheric yacht exterior lighting.

Blue light creates a distinctive nighttime appearance and is ideal for sophisticated accent lighting around spreaders, mast and deck areas.

If blue illumination is required for another Spreader LED version or beam configuration, please contact us. As a manufacturer of marine lighting, we can produce selected Spreader LED configurations with blue illumination on request in our manufactory, subject to technical feasibility.

This provides yacht owners, shipyards and designers with additional flexibility when planning individual marine and yacht lighting concepts.

Key Features

• High-performance marine LED spreader light for larger yachts
• High-quality turned aluminum housing
• Titan anodized finish for a modern and sophisticated appearance
• Different light color and beam configurations available
• 4000K white light with CRI >85
• Warm white 2700K available for selected configurations
• Blue illumination available for selected configurations
• Additional blue light configurations can be manufactured on request
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• LED lifetime of more than 40,000 hours
• PWM dimmable for adjustable light intensity
• IP67 protection for demanding marine environments
• Supplied with 2000 mm cable
• Installation with M5 AISI 316 stainless steel screws

Beam Options

The Spreader LED 6509 Series offers dedicated beam configurations for different yacht lighting requirements.

Light cone: 16°
Port / Starboard beam: 16 × 43°

The focused beam geometry provides efficient illumination exactly where required while maintaining a discreet and integrated appearance on the yacht.

Available light colors depend on the selected beam and product configuration. For individual requirements or blue illumination in another Spreader LED configuration, please contact us to discuss the available manufacturing options.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6509 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver is designed for both 12V and 24V DC electrical systems, making the fixture suitable for a wide range of yacht installations.

For additional lighting flexibility, the Spreader LED is compatible with PWM dimmers, allowing the brightness to be adjusted according to the required function or atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

The Spreader LED 6509 has an IP67 protection rating, providing a high level of protection against water and dust for reliable operation in exposed marine environments.

Its turned aluminum construction, titan anodized finish and LED lifetime of more than 40,000 hours make it a reliable lighting solution for new yacht builds, refits and replacement installations.

The sophisticated titan appearance allows the fixture to integrate discreetly into modern yacht designs while providing powerful and efficient exterior illumination.

Technical Specifications

Product: Spreader LED 6509 Titan Aluminum Series
Product type: Marine LED spreader light
Material: Turned aluminum
Finish: Titan anodized
Application: Yacht spreader, mast and deck lighting
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Standard light color: 4000K white
Warm white option: 2700K on selected configurations
Blue light: Available for selected configurations; additional versions can be manufactured with blue illumination on request
Color rendering: CRI >85 for the 4000K version
Beam options: 16° / Port-Starboard 16 × 43°
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2000 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6509 Titan Aluminum Series combines efficient marine LED technology, flexible lighting options and a sophisticated titan finish for professional yacht installations.

• functional 4000K white illumination
• atmospheric 2700K warm white available for selected configurations
• selected versions available with blue illumination
• additional blue configurations can be manufactured on request
• flexible lighting solutions for individual yacht projects
• sophisticated titan anodized aluminum design
• only 3.6W power consumption
• suitable for 12V and 24V yacht electrical systems
• IP67 protection for exposed marine applications
• PWM dimming for flexible lighting control
• more than 40,000 hours LED lifetime
• ideal for new builds, yacht refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6509 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6509 used for?

The Spreader LED 6509 is a marine LED spreader light designed for larger yachts. It provides efficient exterior illumination for spreader, mast and deck lighting applications with dedicated beam configurations.

What is the Spreader LED 6509 made from?

The Spreader LED 6509 is manufactured from high-quality turned aluminum and features a sophisticated titan anodized finish. Its compact design integrates discreetly into modern yacht exteriors.

Is the Spreader LED 6509 available with warm white light?

Yes. Selected configurations of the Spreader LED 6509 Series are available with 2700K warm white illumination for a softer and more atmospheric yacht lighting concept.

Is the Spreader LED 6509 available with blue light?

Yes. Selected Spreader LED 6509 configurations are available with blue illumination for atmospheric yacht exterior lighting.

If blue light is required for another Spreader LED version or beam configuration, please contact us. Selected configurations can be manufactured with blue illumination on request, subject to technical feasibility.

Can other Spreader LED configurations be manufactured with blue light?

Yes. Selected Spreader LED versions and beam configurations can be manufactured with blue illumination on request in our manufactory. Please contact us with your required configuration so that we can evaluate the technical feasibility and suitable lighting solution for your yacht project.

Is the Spreader LED 6509 suitable for exposed marine areas?

Yes. The Spreader LED 6509 has an IP67 protection rating and is designed for demanding yacht and marine environments.

Can the Spreader LED 6509 be dimmed?

Yes. The Spreader LED 6509 is PWM dimmable, allowing the brightness to be adapted to different onboard lighting requirements. A compatible PWM dimmer is not included.

Is the Spreader LED 6509 compatible with 12V and 24V yachts?

Yes. Its internal driver supports both 12V and 24V DC electrical systems, making it suitable for a wide range of yacht installations.
