Spreader LED 6508 Black Aluminum Series

Premium Marine Spreader Light for Yachts – Multiple Light and Beam Options

The Spreader LED 6508 Black Aluminum Series is a high-performance marine LED spreader light designed for larger yachts and demanding marine applications. Manufactured from high-quality turned aluminum with a black anodized finish. Its compact and modern design creates a discreet, premium appearance that blends harmoniously with the aesthetics of modern yachts.

With only 3.6W power consumption, an internal driver for 12V and 24V DC systems, IP67 protection and an LED lifetime of more than 40,000 hours, the Spreader LED 6508 combines efficient illumination with reliable marine performance and a sophisticated black finish.

The series offers different beam and light color configurations for specific onboard lighting requirements. In addition to white and warm white illumination, the 6508-02 16 (BL) is available as the standard configuration with blue light. Selected additional Spreader LED configurations can also be manufactured with blue illumination on request.

Light Color Options

White Light – 4000K

The 4000K version provides clear, natural white illumination with CRI >85. It is ideal for functional spreader and deck lighting where excellent visibility and natural color rendering are required.

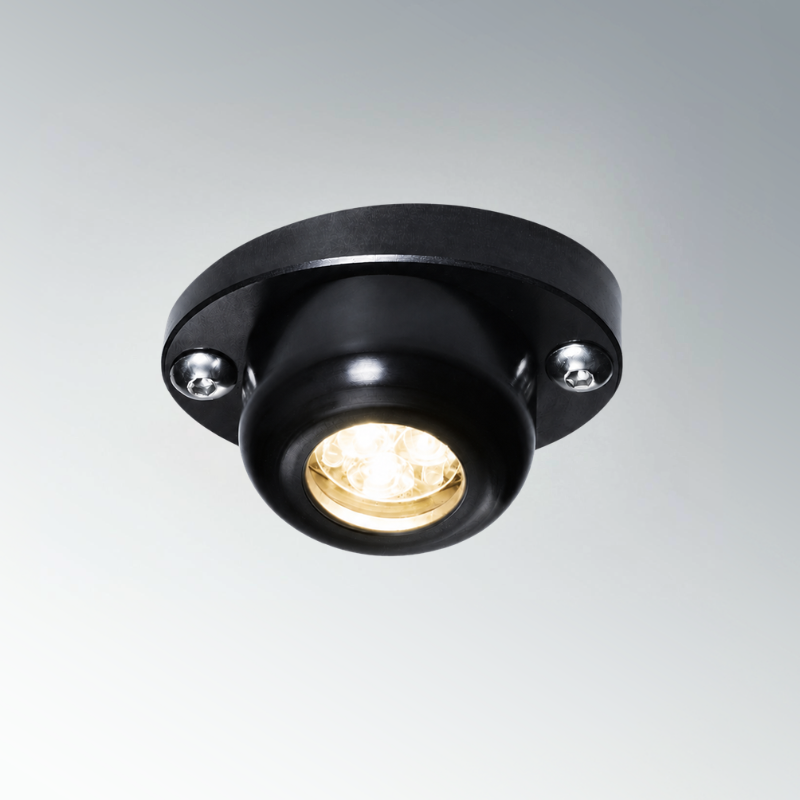

Warm White Light – 2700K

Selected Spreader LED 6508 configurations are also available with 2700K warm white illumination.

The softer warm white light creates an elegant and comfortable atmosphere and is particularly suitable for yachts where exterior lighting is intended to complement warm interior and ambient lighting concepts.

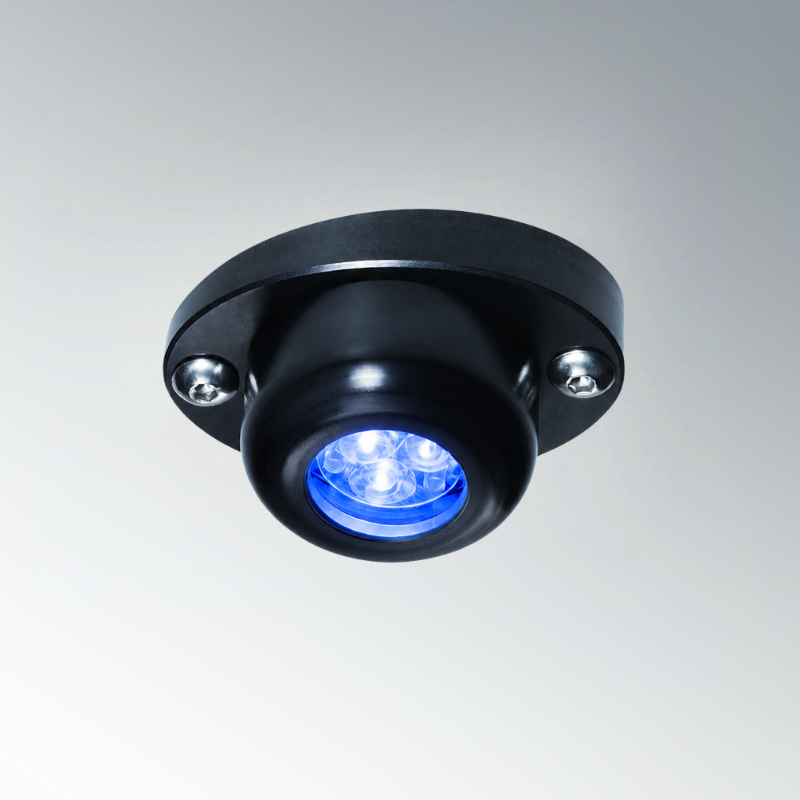

Blue Light – 6508-02 16 (BL)

For atmospheric yacht exterior lighting, the 6508 Series is available in a dedicated blue light version:

6508-02 16 (BL)

This version combines the 16° beam configuration with blue LED illumination and is ideal for creating distinctive nighttime accent lighting on modern yachts.

The 6508-02 16 (BL) is our standard configuration with blue illumination. If blue light is required for another Spreader LED version or beam configuration, please contact us. As a manufacturer of marine lighting, we can produce selected Spreader LED configurations with blue illumination on request in our manufactory, subject to technical feasibility.

This provides yacht owners, shipyards and designers with additional flexibility when planning individual marine and yacht lighting concepts.

Key Features

• Marine LED spreader light designed for larger yachts
• Turned aluminum housing with black anodized finish

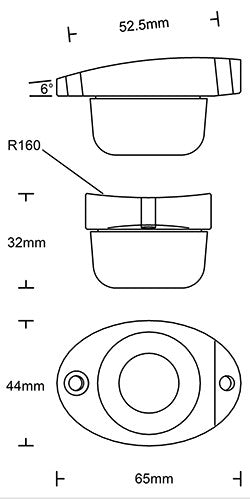

• Designed to fit R160–R200 spreader profiles
• Different light color and beam configurations available
• Standard blue light version: 6508-02 16 (BL)
• Selected additional Spreader LED versions available with blue illumination on request
• Warm white 2700K available for selected configurations
• Low power consumption of only 3.6W
• Internal driver for 12V and 24V DC systems
• CRI >85 for the 4000K white version
• LED lifetime of more than 40,000 hours
• PWM dimmable for adjustable light intensity
• IP67 protection for demanding marine environments
• Supplied with 2000 mm cable
• Installation with M5 AISI 316 stainless steel screws

Beam Options

The Spreader LED 6508 Series offers dedicated beam configurations for different yacht lighting requirements.

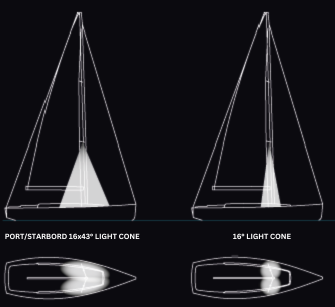

Light cone: 16°
Port / Starboard beam: 16 × 43°

The focused beam geometry provides efficient illumination exactly where required while maintaining a discreet and integrated appearance on the yacht.

Available light colors depend on the selected beam and product configuration. For individual requirements or blue illumination in another Spreader LED configuration, please contact us to discuss the available manufacturing options.

Efficient Marine LED Lighting

With a power consumption of only 3.6W, the Spreader LED 6508 provides efficient yacht exterior illumination while keeping onboard energy consumption low.

The integrated driver is designed for both 12V and 24V DC electrical systems, making the fixture suitable for a wide range of yacht installations.

For additional lighting flexibility, the Spreader LED is compatible with PWM dimmers, allowing the brightness to be adjusted according to the required function or atmosphere.

PWM dimmer not included.

Designed for Demanding Marine Environments

The Spreader LED 6508 has an IP67 protection rating, providing a high level of protection against water and dust for reliable operation in exposed marine environments.

Its turned aluminum construction, durable black anodized finish and LED lifetime of more than 40,000 hours make it a robust lighting solution for new yacht builds, refits and replacement installations.

The sophisticated black appearance allows the fixture to integrate discreetly into modern yacht designs and dark spreader profiles.

Technical Specifications

Product: Spreader LED 6508 Black Aluminum Series
Product type: Marine LED spreader light
Material: Turned aluminum
Finish: Black anodized
Application: Larger yachts / R160–R200 spreader profiles
Power consumption: 3.6W
Voltage: 12V / 24V DC
Driver: Internal
Standard light color: 4000K white
Warm white option: 2700K on selected configurations
Blue light: Standard version 6508-02 16 (BL); selected additional Spreader LED configurations available with blue illumination on request
Color rendering: CRI >85 (4000K version)
Beam options: 16° / Port-Starboard 16 × 43°
Dimming: PWM dimmable
LED lifetime: >40,000 hours
Protection rating: IP67
Cable length: 2000 mm
Fixing: M5 AISI 316 stainless steel screws
Fixing screws: Not included

Product Benefits

The Spreader LED 6508 Black Aluminum Series combines efficient marine LED technology with dedicated beam and light configurations for professional yacht installations.

• functional white and atmospheric warm white lighting options
• standard 6508-02 16 (BL) version with blue illumination
• selected additional configurations can be manufactured with blue illumination on request
• flexible lighting solutions for individual yacht projects
• designed for R160–R200 yacht spreader profiles
• sophisticated black anodized aluminum design
• only 3.6W power consumption
• suitable for 12V and 24V yacht electrical systems
• IP67 protection for exposed marine applications
• PWM dimming for flexible lighting control
• more than 40,000 hours LED lifetime
• ideal for new builds, yacht refits and lighting upgrades

Installation Recommendation – TIKAL TEF-GEL

For a secure and long-lasting installation of the Spreader LED 6508 Series, we recommend using TIKAL TEF-GEL.

In marine environments, contact between dissimilar metals such as stainless steel fasteners and aluminum components can promote galvanic corrosion. TEF-GEL helps isolate these materials and provides additional protection for the installation.

Apply a thin layer of TEF-GEL to screw threads and relevant electrical contacts during installation. This helps protect against moisture, oxidation and contact corrosion and supports the long-term reliability of the marine lighting installation.

What is the Spreader LED 6508 used for?

The Spreader LED 6508 is a marine LED spreader light designed for larger yachts and R160–R200 spreader profiles. It provides efficient exterior illumination with dedicated beam configurations for yacht spreader and deck lighting applications.

Is the Spreader LED 6508 available with warm white light?

Yes. Selected configurations of the Spreader LED 6508 Series are available with 2700K warm white illumination for a softer and more atmospheric yacht lighting concept.

Is the Spreader LED 6508 available with blue light?

Yes. The 6508-02 16 (BL) is the standard Spreader LED 6508 configuration available with blue illumination. It combines a 16° beam with blue LED light for atmospheric yacht exterior lighting.

If blue light is required for another Spreader LED version or beam configuration, please contact us. Selected configurations can be manufactured with blue illumination on request, subject to technical feasibility.

Can other Spreader LED versions be manufactured with blue light?

Yes. Selected Spreader LED versions and beam configurations can be manufactured with blue illumination on request in our manufactory. Please contact us with your required configuration so that we can evaluate the appropriate custom marine lighting solution and technical feasibility.

Is the Spreader LED 6508 suitable for exposed marine areas?

Yes. The Spreader LED 6508 has an IP67 protection rating and is designed for demanding yacht and marine environments.

Can the Spreader LED 6508 be dimmed?

Yes. The Spreader LED 6508 is PWM dimmable, allowing the brightness to be adapted to different onboard lighting requirements. A compatible PWM dimmer is not included.

Is the Spreader LED 6508 compatible with 12V and 24V yachts?

Yes. Its internal driver supports both 12V and 24V DC electrical systems, making it suitable for a wide range of yacht installations.
