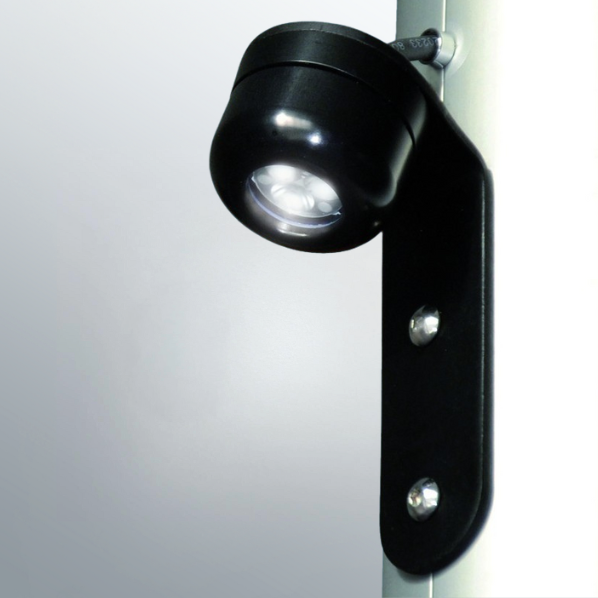

Mast LED 6808 Series Black Aluminum - 16°

The Mast LED 6808 Series Black Aluminum – 16° is a compact and powerful LED mast and deck light for yachts and boats, designed for reliable exterior illumination in demanding marine environments. With a focused 16° beam angle, a light output of 400 lumens and low power consumption of only 3.6 W, it provides efficient and precise illumination for small and medium-sized yachts.

Manufactured from turned aluminum with a black anodized surface, the Mast LED 6808 combines a clean marine design with excellent durability and corrosion resistance. Its IP67 protection rating, integrated 12–24 V DC driver and high color rendering of CRI > 90 make it particularly suitable for professional yacht and marine lighting installations.

Dimensions

• Diameter: Ø44 mm
• Height: 30 mm
• Weight: 85 g without cable

Key Features

• Compact LED mast and deck light for yachts and boats
• Focused 16° beam angle for precise illumination
• Powerful 400 lumen light output
• 4000 K neutral white light
• High color rendering with CRI > 90
• Low power consumption of only 3.6 W
• Integrated driver for 12–24 V DC
• Durable black anodized aluminum housing
• IP67 protection for demanding marine environments
• Long LED lifetime of more than 40,000 hours
• Supplied with 7500 mm cable
• Other cable lengths available upon request

Technical Specifications

• Product Series: Mast LED 6808
• Material: Turned aluminum
• Finish: Black anodized
• Light Source: LED
• Light Output: 400 lm
• Color Temperature: 4000 K
• Color Rendering Index: CRI > 90
• Beam Angle: 16°
• Power Consumption: 3.6 W
• Voltage: 12–24 V DC
• Driver: Integrated internal driver
• Protection Rating: IP67
• LED Lifetime: >40,000 hours
• Cable Length: 7500 mm
• Fixing: M5 screws, AISI 316 stainless steel
• Dimensions: Ø44 × 30 mm
• Weight: 85 g without cable

Designed for Marine Applications

The Mast LED 6808 Black Aluminum is engineered specifically for yacht and boat installations where compact dimensions, focused illumination and reliable performance are essential. The narrow 16° light cone directs the light precisely onto the required area, making the fixture particularly suitable for mast, deck and exterior lighting applications.

With its combination of 400 lumens, CRI > 90, IP67 protection and 12–24 V DC compatibility, the Mast LED 6808 provides an efficient and durable lighting solution for modern sailing yachts and motor yachts.

The Mast LED 6808 Series Black Aluminum – 16° is a compact marine LED light for yachts and boats. It delivers 400 lumens at 4000 K with a focused 16° beam angle and high color rendering of CRI > 90. With only 3.6 W power consumption, an integrated 12–24 V DC driver and an IP67-rated black anodized aluminum housing, it is designed for reliable mast, deck and exterior illumination. The fixture measures Ø44 × 30 mm, weighs 85 g without cable and is supplied with a 7500 mm cable, making it a durable and energy-efficient solution for small and medium-sized yachts.

What is the Mast LED 6808 designed for?

The Mast LED 6808 is designed for mast, deck and exterior lighting on sailing yachts, motor yachts and boats. Its compact dimensions and focused beam make it particularly suitable for installations where precise illumination is required.

What is the beam angle of the Mast LED 6808?

The Mast LED 6808 has a focused 16° beam angle. This creates a concentrated light cone for targeted illumination of specific areas on a yacht or boat.

How bright is the Mast LED 6808?

The Mast LED 6808 provides a light output of 400 lumens while consuming only 3.6 W, offering efficient illumination with low energy consumption.

What is the color temperature and CRI?

The Mast LED 6808 produces neutral white light at 4000 K and has a high color rendering index of CRI > 90. This provides natural and accurate color reproduction.

Can the Mast LED 6808 be used with both 12 V and 24 V systems?

Yes. The integrated internal driver is designed for 12–24 V DC systems, making the light suitable for common electrical systems used on yachts and boats.

Is the Mast LED 6808 waterproof?

The Mast LED 6808 has an IP67 protection rating. It is designed for demanding marine environments and is protected against dust and temporary immersion in water.

What material is the Mast LED 6808 made from?

The housing is manufactured from turned aluminum with a black anodized surface, providing durability and corrosion resistance for marine applications.

What cable length is supplied with the Mast LED 6808?

The standard version is supplied with a 7500 mm cable. Other cable lengths are available upon request.
