Courtesy Light 1039-2 Titan Aluminium

Courtesy Light 1039-2 Titan Aluminium

1039/2WH

€145,50 EUR
€145,50 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
LED Light Color
Voltage

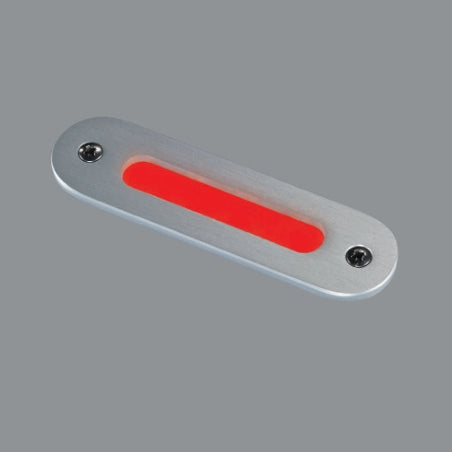

A slim semi-surface-mounted LED courtesy light in titanium-anodised aluminium for steps, stairs and walkways on yachts and boats. A single opal diffuser gives a soft, even glow with no visible LED dots and a colour rendering index above 90. It uses only 0.5 W and measures 90 × 25 × 5 mm.

  • 0.5 WPower consumption
  • 4 coloursWhite, Red, Blue, Yellow
  • 10–30 V DC 12 V and 24 V systems
  • IP20Interior and covered areas
  • Titan AluminiumMaterial

Where to use it
  • Steps
  • Stairs
  • Walkways
  • Cabins

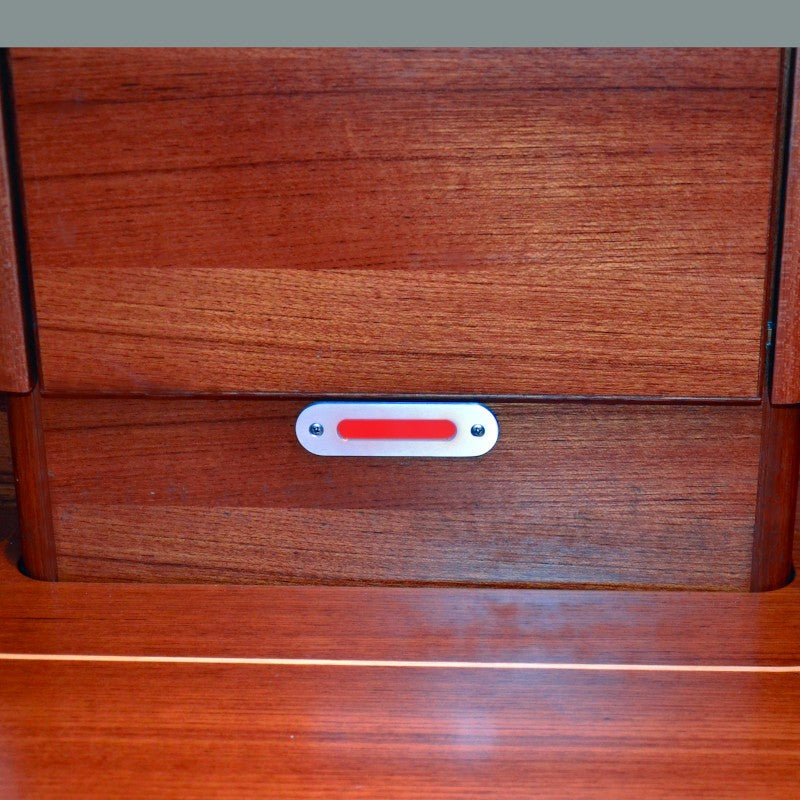

Discreet step and night lighting on board: stairs, walkways and other areas that need low, ambient light. The single opal diffuser spreads the light evenly, so it marks the way without drawing attention to the light source. With only 0.5 W and an LED lifespan of over 50,000 hours, it suits long operating hours on the battery.

Specifications

Light

Light coloursWhite, Red, Blue, Yellow
Colour renderingCRI >90

Electrical

Supply voltage10–30 V DC
Power consumption0.5 W
Current at 12 Vapprox. 42 mA
Current at 24 Vapprox. 21 mA

Mechanical

MountingSemi-Surface-Mounted
MaterialTitan Aluminium
Ingress protectionIP20

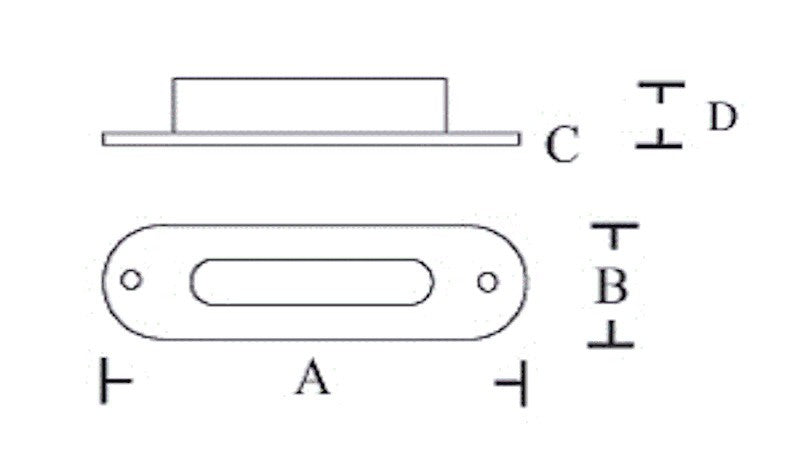

Installation and dimensions

The light is semi-surface-mounted. The integrated LED driver provides stable voltage regulation, which keeps the light output consistent over the lifetime of the light.

Choose the 10–16 V version for 12 V systems or the 20–30 V version for 24 V systems.

Versions and order numbers
Order no.Version
1039/2WHWhite Light / 10-16V
1039/2WH 24VWhite Light / 20-30V
1039/2RERed Light / 10-16V
1039/2RE 24VRed Light / 20-30V
1039/2BLBlue Light / 10-16V
1039/2BL 24VBlue Light / 20-30V
1039/2YEYellow Light / 10-16V
1039/2YE 24VYellow Light / 20-30V

Available with white, red, blue or yellow light, each as a 10–16 V or 20–30 V version. Specify light colour and voltage when ordering.

Frequently asked questions

What is the Courtesy Light 1039-2 used for?
For discreet step and night lighting on stairs, walkways and other areas on board that need low, ambient light. The opal diffuser gives a soft glow with no visible LED dots.

Which light colours are available?
White, red, blue and yellow light. Each colour is available as a 10–16 V and a 20–30 V version.

Does it work on 12 V and 24 V boats?
Yes, with the matching version: 10–16 V for 12 V systems and 20–30 V for 24 V systems. Please specify the voltage when ordering.

Can it be used outdoors?
It is rated IP20 and intended for interior and covered areas.

How much power does it use?
Only 0.5 W. The LEDs are rated for a lifespan of over 50,000 hours.

What are the dimensions?
The light measures 90 × 25 × 5 mm and is semi-surface-mounted. The housing is made of titanium-anodised aluminium.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.
