Cabin Denmark

Courtesy Light 1036-2 Stainless Steel

Courtesy Light 1036-2 Stainless Steel

1036/2WH

€209,90 EUR
€209,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
LED Light Color
Voltage

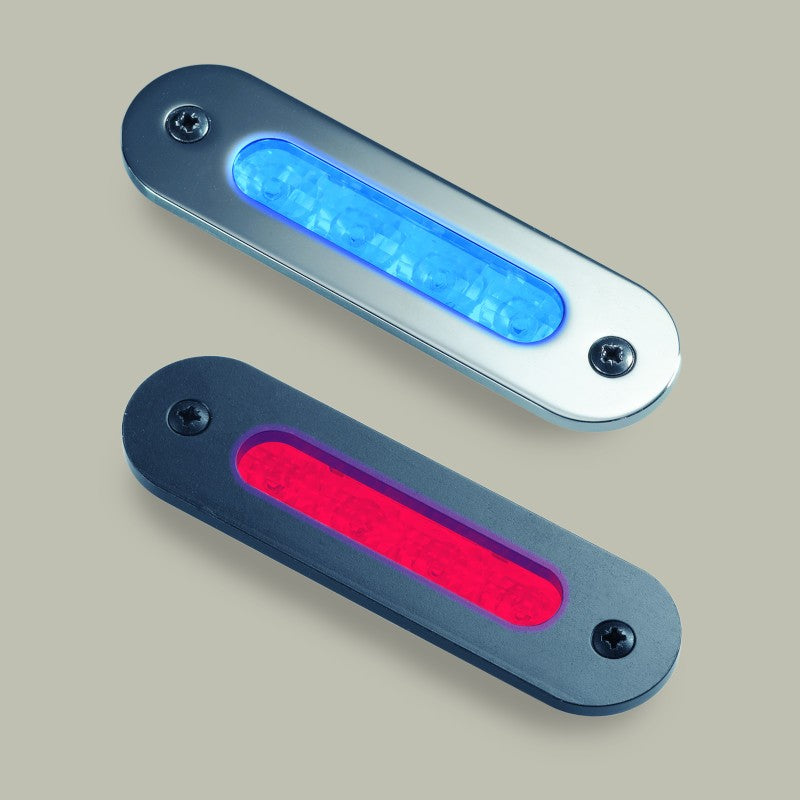

A semi-surface-mounted LED courtesy light in AISI 316 stainless steel for steps, cabins and night lighting on classic yachts. A single opal diffuser gives soft, even light with no visible LED dots and a colour rendering index above 90, from only 0.3 W. Compact at 90 × 25 × 5 mm, with an LED lifespan of over 50,000 hours.

  • 0.3 WPower consumption
  • 3 coloursWhite, Red, Blue
  • 10–30 V DC 12 V and 24 V systems
  • IP20Interior and covered areas
  • AISI 316Material

Where to use it
  • Steps
  • Cabins
  • Hallways
  • Covered exterior areas

Soft step, night and orientation lighting for classic yachts, below deck and in covered exterior areas. The single opal diffuser spreads the light evenly with no visible LED dots, so it reads as one calm surface rather than individual points. With 0.3 W power consumption it suits long operating hours, and at 90 × 25 × 5 mm in AISI 316 stainless steel it stays discreet as a design element in classic interiors.

Specifications

Light

Light coloursWhite, Red, Blue
Colour renderingCRI >90

Electrical

Supply voltage10–30 V DC
Power consumption0.3 W
Current at 12 Vapprox. 25 mA
Current at 24 Vapprox. 13 mA

Mechanical

MaterialStainless steel AISI 316
Ingress protectionIP20

Installation and dimensions

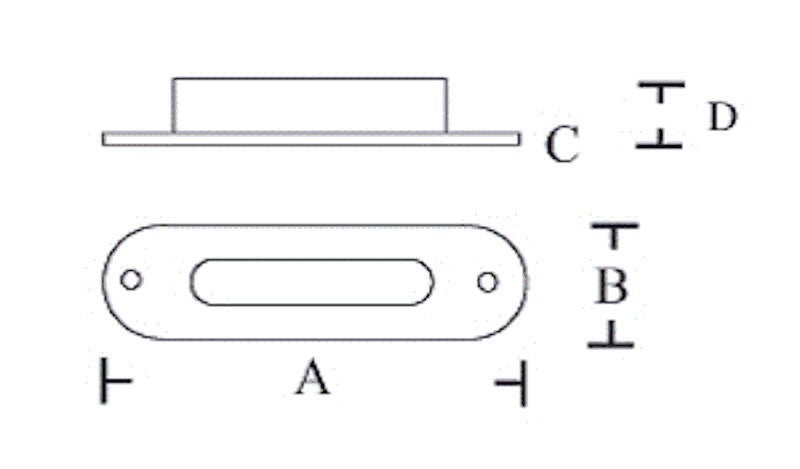

The light is semi-surface-mounted and measures 90 × 25 × 5 mm.

Choose the 10–16 V version for 12 V systems or the 20–30 V version for 24 V systems. The integrated LED driver stabilises voltage fluctuations and keeps the light output steady.

Versions and order numbers
Order no.Version
1036/2WHWhite Light / 10-16V
1036/2WH 24VWhite Light / 20-30V
1036/2RERed Light / 10-16V
1036/2RE 24VRed Light / 20-30V
1036/2BLBlue Light / 10-16V
1036/2BL 24VBlue Light / 20-30V

Available with White Light, Red Light or Blue Light, each as 10–16 V or 20–30 V version. Specify light colour and voltage when ordering.

Frequently asked questions

What is the Courtesy Light 1036-2 used for?
For soft step and night lighting on classic yachts, in cabins, hallways and covered exterior areas. At 90 × 25 × 5 mm it also works as a discreet design element.

Is there a 12 V and a 24 V version?
Yes. The 12 V version runs on 10–16 V DC, the 24 V version on 20–30 V DC. Please specify the voltage when ordering.

Which light colours are available?
White, red or blue light. Each version uses a single opal diffuser for even light with no visible LED dots, from 0.3 W.

Can it be used outdoors?
It is rated IP20, so it is suited to interiors and covered exterior areas. It is not intended for exposed positions.

How much power does it use?
Only 0.3 W, about 25 mA at 12 V. The LEDs have a lifespan of over 50,000 hours.

What material is the housing made of?
AISI 316 stainless steel, chosen for its corrosion resistance in the marine environment.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.

View full details
