Courtesy Light 1009 MOD.3 Titan Aluminium

Courtesy Light 1009 MOD.3 Titan Aluminium

1009 MOD.3 12V

€88,00 EUR
€88,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Voltage

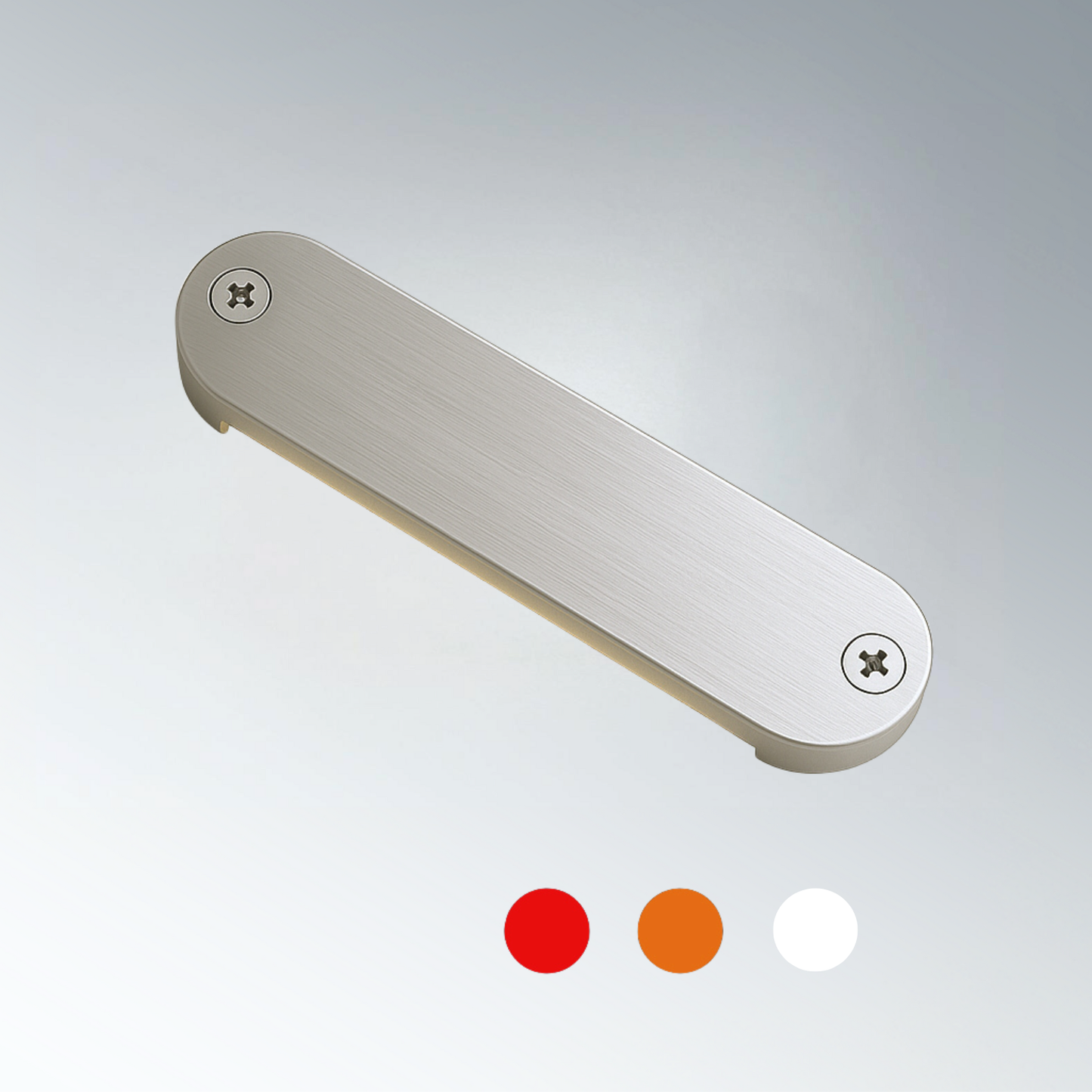

A compact surface-mounted LED courtesy light in silver hard-anodised Titan Aluminium for cabins, cockpits and decks. It combines white, red and orange in one fixture: orange results from switching white and red on at the same time. Only 0.2 W, IP65, CRI above 90 and 82 × 20 × 6 mm, available as 12 V or 24 V version.

  • 0.2 WPower consumption
  • IP65Interior and exterior
  • Titan AluminiumMaterial

Where to use it
  • Cabins
  • Cockpit
  • Deck
  • Steps

Courtesy and orientation lighting for cabins, cockpits and decks, with three light colours in one fixture. White gives clear visibility in port, shows contours and adds safety when docking. Red supports orientation at night, preserves night vision and minimises glare. Orange gives a warm, calm light for quiet hours on board. With IP65 the light suits interior and exterior positions, and at 0.2 W it is well suited to long operating hours on the onboard battery.

Specifications

Light

Colour renderingCRI >90

Electrical

Power consumption0.2 W

Mechanical

MaterialTitan Aluminium
Ingress protectionIP65

Installation and dimensions

Surface-mounted on smooth surfaces, so no cutout is needed. The housing measures only 82 × 20 × 6 mm.

Choose the 12 V version (10–16 V DC) or the 24 V version (20–30 V DC) to match the onboard supply. The LED driver is integrated and provides constant, flicker-free light.

Versions and order numbers
Order no.Version
1009 MOD.3 12V10-12V
1009 MOD.3 24V20-30V

The 12 V version runs on 10–16 V DC, the 24 V version on 20–30 V DC. Specify version when ordering.

Frequently asked questions

What is the Courtesy Light 1009 MOD.3 used for?
For courtesy and orientation lighting in cabins, in cockpits and on decks. It is rated IP65, so it can be used inside and outside.

Which light colours are available?
White, red and orange in one 82 × 20 × 6 mm fixture. Orange is created by switching white and red on at the same time.

Is there a 12 V and a 24 V version?
Yes. The 12 V version runs on 10–16 V DC, the 24 V version on 20–30 V DC. Please specify the version when ordering.

Can it be used outdoors?
Yes. It is rated IP65, dust-tight and splash-proof, and made of silver hard-anodised Titan Aluminium.

How much power does it use?
Only 0.2 W, which makes it well suited to operation on the onboard battery. The LED has a rated lifespan of over 50,000 hours.

How is it installed?
It is surface-mounted on a smooth surface, so no cutout is needed. The housing measures 82 × 20 × 6 mm.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.
