Cabin Denmark

Courtesy Light 1008 Black Aluminium

Courtesy Light 1008 Black Aluminium

1008WH IP65

€72,50 EUR
€72,50 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
LED Light Color
Voltage

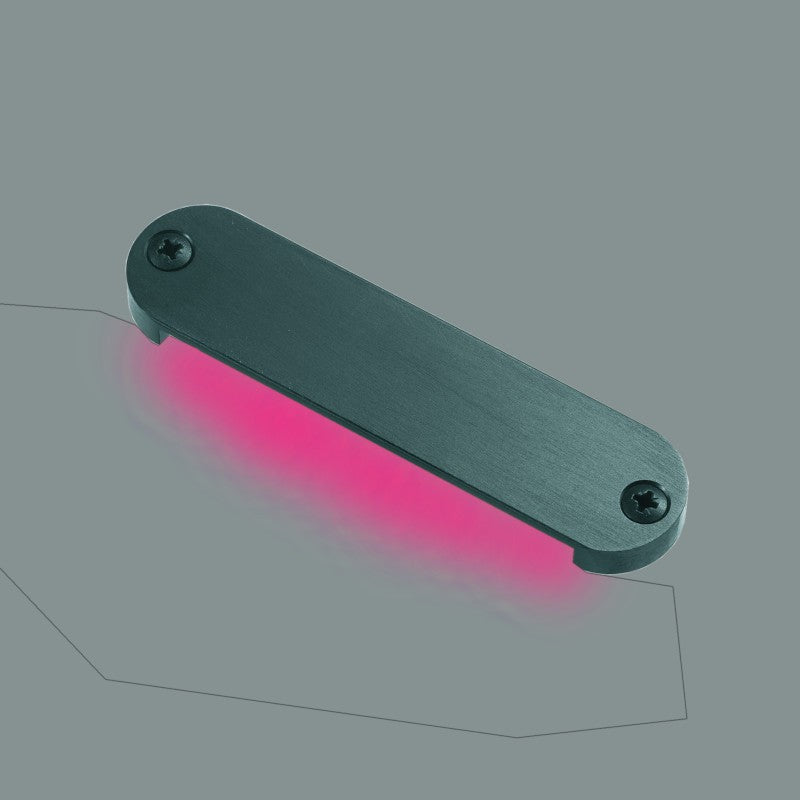

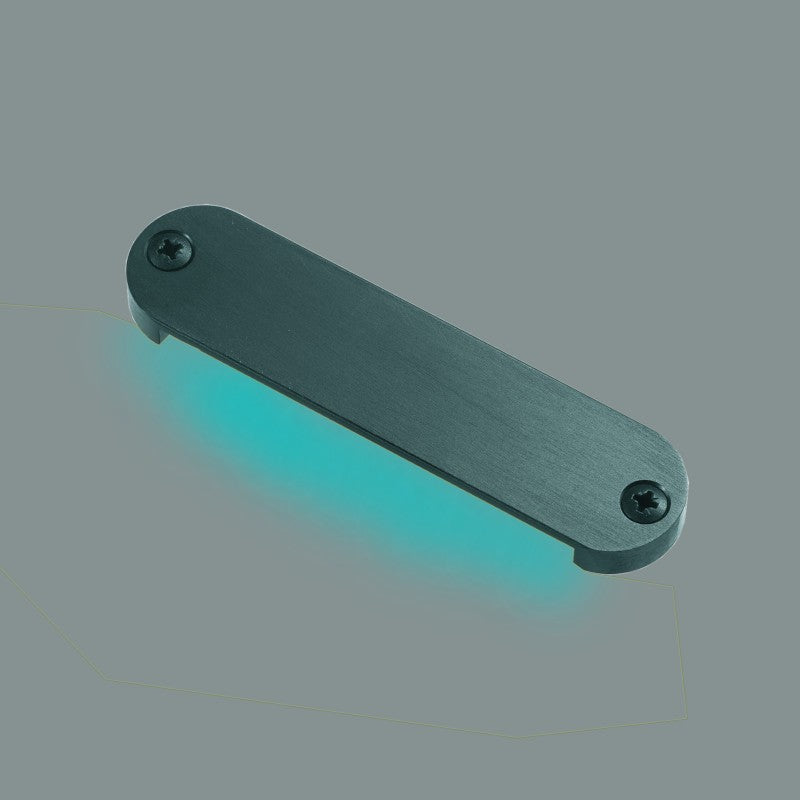

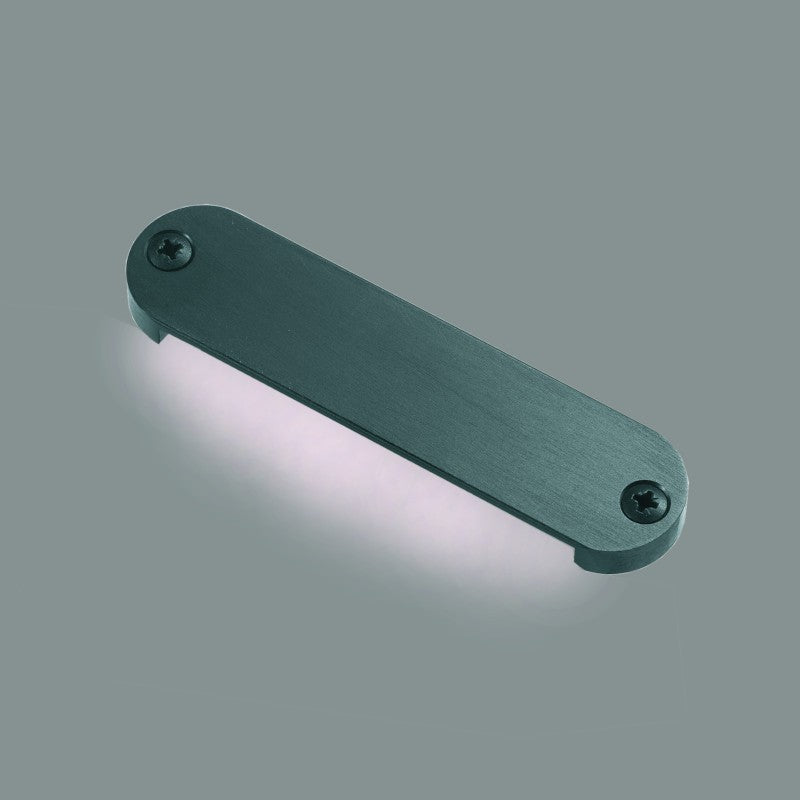

A slim surface-mounted LED courtesy light in black anodised aluminium for steps, hallways, cabins and exterior deck areas on yachts. Available in white, red & white, red or blue, each as 12 V or 24 V version. Only 0.3 W, IP65 and 82 × 20 × 6 mm.

  • 4 coloursWhite, Red & White, Red, Blue
  • 10–30 V DC 12 V and 24 V systems
  • IP65Ingress protection
  • Black anodised aluminiumMaterial

Where to use it
  • Steps
  • Hallways
  • Cabins
  • Exterior deck areas

Discreet orientation and courtesy lighting on board: steps, hallways and cabins below deck as well as exterior deck areas. With IP65 the light suits interior and exterior use, including open deck areas. At 0.3 W and with an LED lifetime of more than 50,000 hours, it handles long operating hours with very little load on the on-board supply.

Specifications

Light

Light coloursWhite, Red & White, Red, Blue

Electrical

Supply voltage10–30 V DC

Mechanical

Ingress protectionIP65

Installation and dimensions

Surface-mounted on flat surfaces, so no cutout is needed. This makes the light a simple choice for refits as well as new builds.

Choose the 12 V version (10–16 V) or the 24 V version (20–30 V) to match the on-board supply. The integrated driver keeps the light steady when the supply voltage fluctuates.

Versions and order numbers
Order no.Version
1008WH IP65White Light / 10-16V
1008WH IP65 24VWhite Light / 20-30V
1008REWH IP65Red & White Light / 10-16V
1008REWH IP65 24VRed & White Light / 20-30V
1008RE IP65Red Light / 10-16V
1008RE IP65 24VRed Light / 20-30V
1008BL IP65Blue Light / 10-16V
1008BL IP65 24VBlue Light / 20-30V

Available in white, red & white, red and blue, each as 10–16 V or 20–30 V version. Specify version when ordering.

Frequently asked questions

What is the Courtesy Light 1008 used for?
For discreet orientation and courtesy lighting on steps, in hallways and cabins and on exterior deck areas of yachts. Its slim 82 × 20 × 6 mm housing keeps it unobtrusive.

Which light colours are available?
White, red & white, red and blue. Each colour is available as a 10–16 V or a 20–30 V version.

Is there a 12 V and a 24 V version?
Yes. The 12 V version runs on 10–16 V, the 24 V version on 20–30 V. Please specify the voltage when ordering.

Can it be used outdoors?
Yes. It is rated IP65 and made of black anodised aluminium, so it suits exterior deck areas as well as interiors.

How much power does it use?
Only 0.3 W. Together with an LED lifetime of more than 50,000 hours, this suits long operating hours on board.

How is it installed?

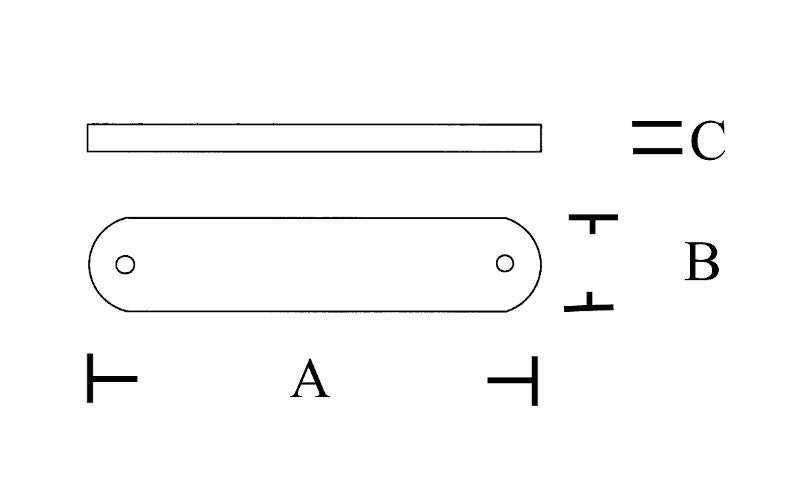

It is surface-mounted on a flat surface, so no cutout is needed. The housing measures 82 × 20 × 6 mm.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.
