Cabin Denmark

Courtesy Light 1007 Carbon

Courtesy Light 1007 Carbon

1007WH IP65

€127,50 EUR
€127,50 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
LED Light Color
Voltage

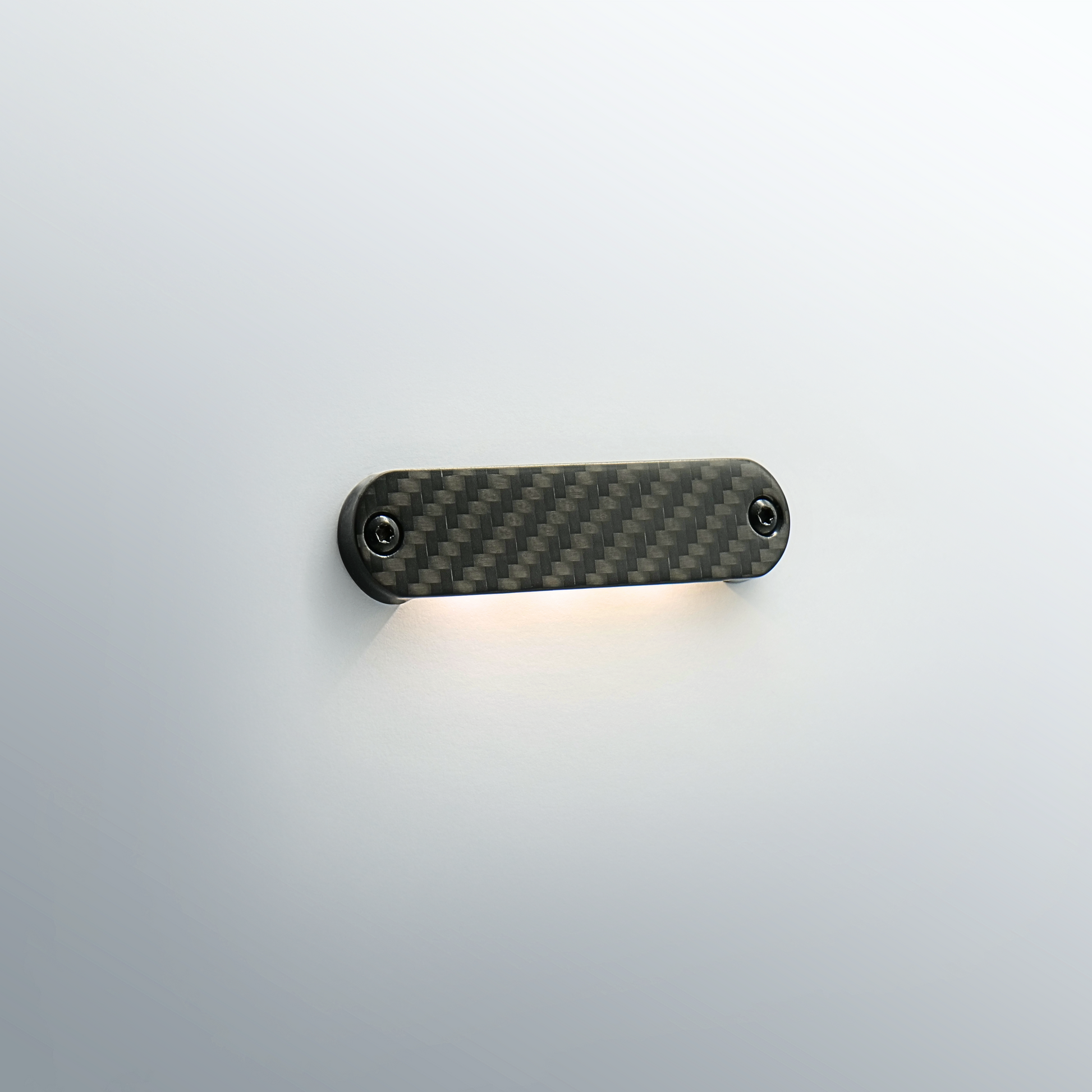

A slim surface-mounted LED courtesy light, CNC-milled from full carbon with a matte finish, for steps, hallways, cabins and exterior deck areas on modern yachts. It illuminates from the bottom for a subtle, refined glow and uses only 0.3 W. Rated IP65, with an LED lifetime of more than 50,000 hours, and only 82 × 20 × 6 mm.

  • 4 coloursWhite, Red & White, Red, Blue
  • 10–30 V DC 12 V and 24 V systems
  • IP65Ingress protection
  • Full carbonMaterial

Where to use it
  • Steps
  • Hallways
  • Cabins
  • Exterior deck areas

Discreet orientation and courtesy lighting on deck and below. The light shines from the bottom, so it marks steps and floors with a subtle glow and adds to safety after dark. With IP65 it suits both interior and exterior areas, and at 0.3 W it is well suited to long journeys on battery power. The matte full carbon housing fits the clean lines of modern yacht interiors.

Specifications

Light

Light coloursWhite, Red & White, Red, Blue

Electrical

Supply voltage10–30 V DC

Mechanical

Ingress protectionIP65

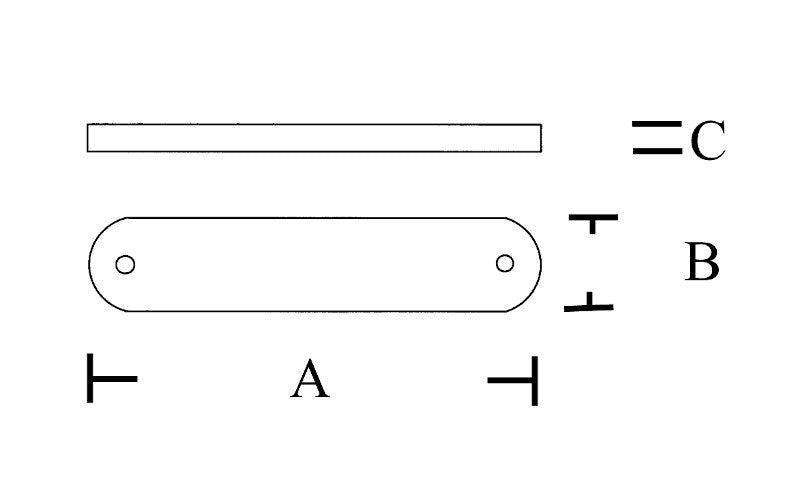

Installation and dimensions

Surface-mounted, so no cutout is needed.

Choose the 10–16 V or the 20–30 V version to match the on-board supply. The integrated LED driver regulates voltage fluctuations and keeps the light output steady.

Versions and order numbers
Order no.Version
1007WH IP65White Light / 10-16V
1007WH IP65 24VWhite Light / 20-30V
1007REWH IP65Red & White Light / 10-16V
1007REWH IP65 24VRed & White Light / 20-30V
1007RE IP65Red Light / 10-16V
1007RE IP65 24VRed Light / 20-30V
1007BL IP65Blue Light / 10-16V
1007BL IP65 24VBlue Light / 20-30V

Available with white, red and white, red or blue light, each in a 10–16 V or 20–30 V version; specify light colour and voltage when ordering.

Frequently asked questions

What is the Courtesy Light 1007 used for?
It provides discreet orientation and courtesy lighting on steps, in hallways and cabins and on exterior deck areas. It illuminates from the bottom and uses only 0.3 W.

Which light colours are available?
White, red and white, red and blue light. Each colour is available in a 10–16 V and a 20–30 V version.

Is there a 12 V and a 24 V version?
Yes. The 12 V version runs on 10–16 V, the 24 V version on 20–30 V. Please specify the voltage when ordering.

Can it be used outdoors?
Yes. It is rated IP65 for interior and exterior use, including demanding marine environments on deck.

How much power does it use?
Only 0.3 W, which makes it well suited to long journeys on battery power. The LED lifetime is more than 50,000 hours.

How is it installed?
It is surface-mounted, so no cutout is needed. It measures 82 × 20 × 6 mm.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.
