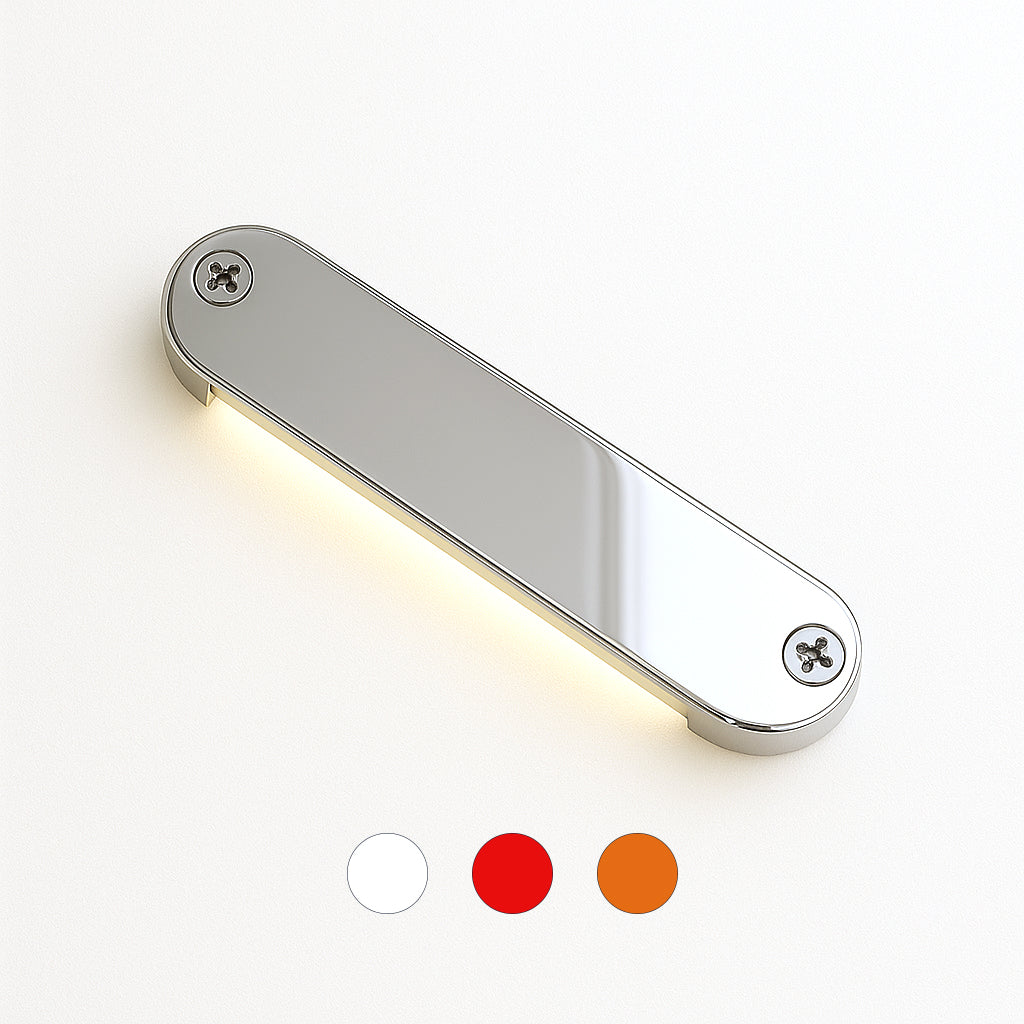

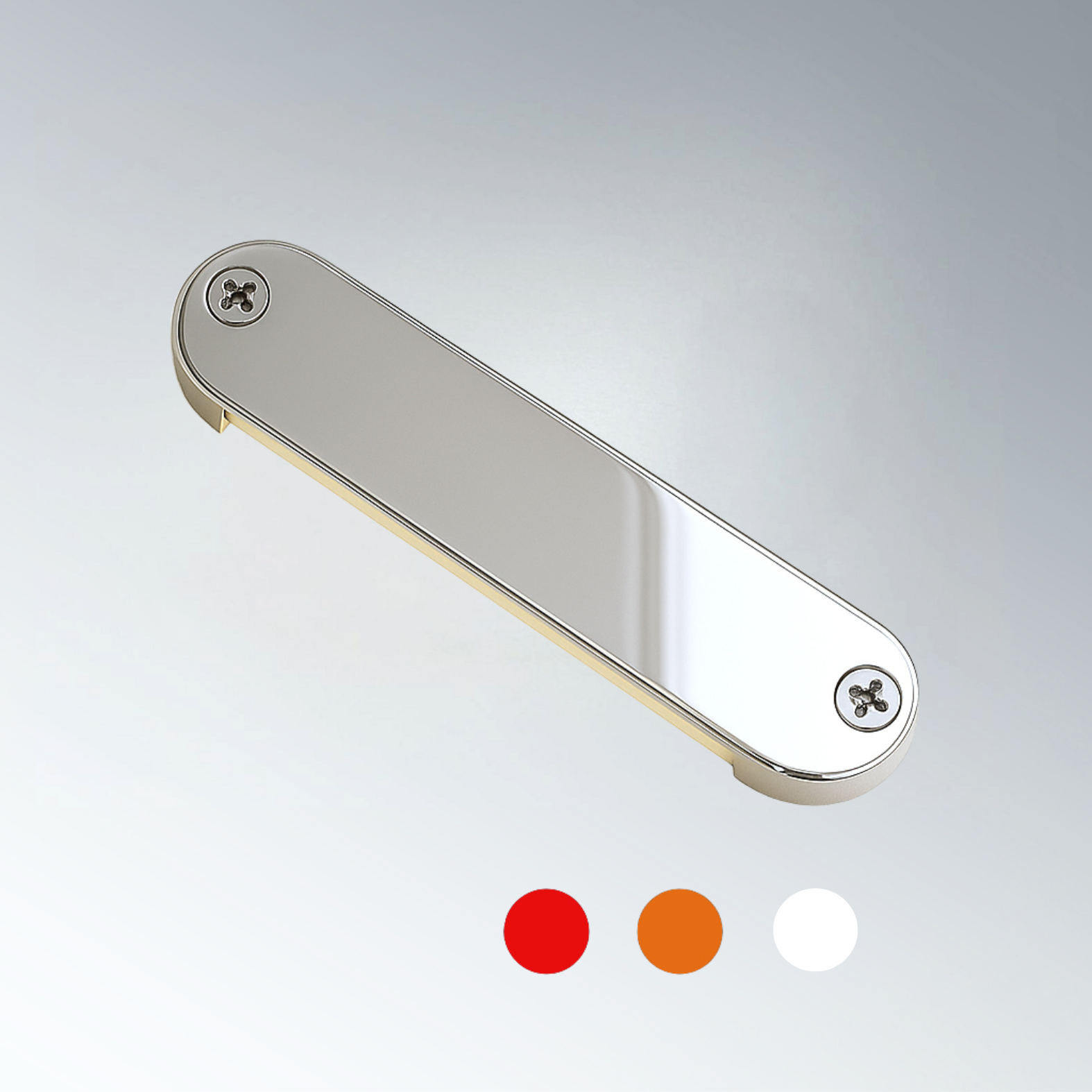

LED Courtesy Light 1006 Stainless Steel MOD.3

A compact surface-mounted LED courtesy light in marine-grade stainless steel that combines white, red and orange light in one fixture. It is designed for cabins, cockpits and decks, with only 0.3 W, IP65 and 82 × 20 × 6 mm. For 12 V or 24 V on-board supplies.

Where to use it

Orientation and courtesy lighting in cabins, cockpits and on deck, with one light for changing requirements on board. White gives clear visibility in port, defines contours and adds safety when docking. Red provides orientation at night, preserves night vision and minimises glare. Orange, created by switching white and red on together, gives warm, calm light for quiet moments. With IP65 it also suits covered exterior areas, and at 0.3 W the load on the on-board battery stays low.

Specifications

• Supply voltage: 12 V or 24 V
• Power consumption: 0.3 W
• Driver: integrated, constant and flicker-free light
• Dimensions: 82 × 20 × 6 mm
• Mounting: surface-mounted
• Material: marine-grade stainless steel
• Ingress protection: IP65
• LED lifetime: > 50,000 h
• Light colours: white, red, orange (white and red combined)
• Light source: LED

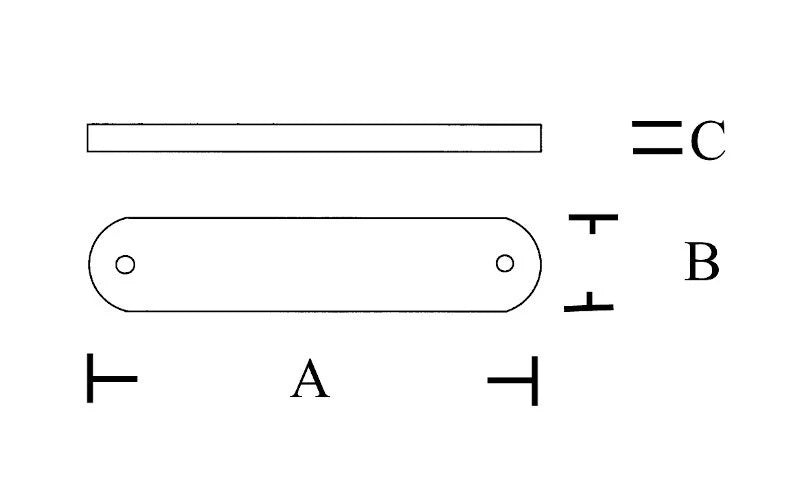

Installation and dimensions

Surface-mounted on smooth surfaces, no cutout needed. At 82 × 20 × 6 mm the light sits flat and discreet on the mounting surface.

The light operates on 12 V or 24 V on-board supplies. The LED driver is integrated and delivers constant, flicker-free light.
