Cabin Denmark

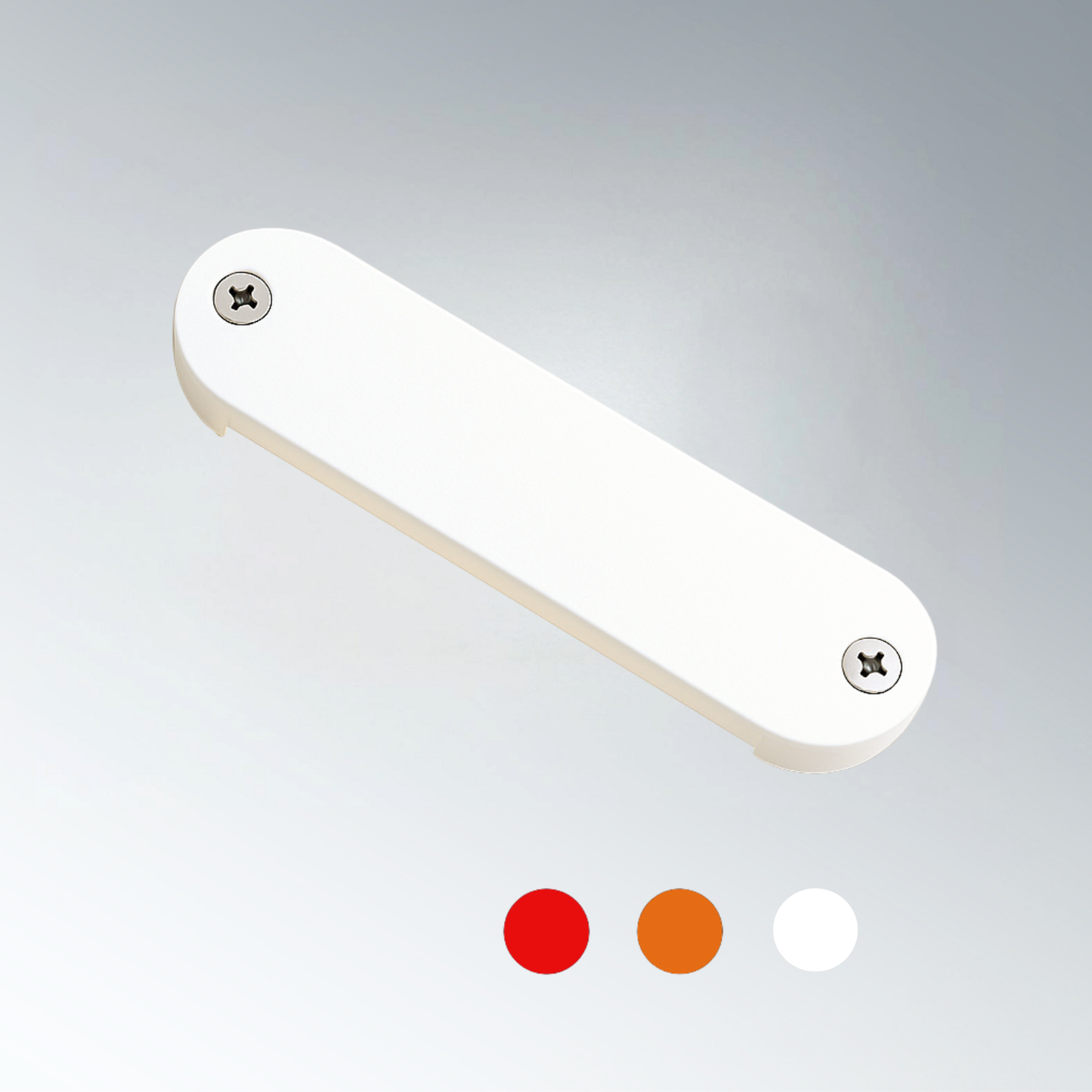

Courtesy Light 1000 MOD.3 White Aluminium

Courtesy Light 1000 MOD.3 White Aluminium

1000WH MOD.3 12V

€92,00 EUR
€92,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Voltage

A compact surface-mounted LED courtesy light in white-painted aluminium that combines white, red and orange light in one fixture, for cabins, cockpits and decks. Orange is created by switching white and red on together. Rated IP65, with CRI above 90 and 82 × 20 × 6 mm, in versions for 12 V and 24 V systems.

  • IP65Interior and exterior
  • White aluminiumMaterial

Where to use it
  • Cabins
  • Cockpit
  • Deck
  • Steps

Orientation and courtesy lighting for cabins, cockpits and decks, with three light colours from one fixture. White gives clear visibility in port, shows contours and adds safety when docking. Red supports orientation at night, preserves night vision and minimises glare. Orange, created by white and red together, gives warm, atmospheric light for quiet moments on board.

With IP65 and a white-painted aluminium housing, the light suits interior and exterior positions. The LEDs are rated for over 50,000 hours of operation.

Specifications

Light

Colour renderingCRI >90

Mechanical

MaterialWhite Aluminium
Ingress protectionIP65

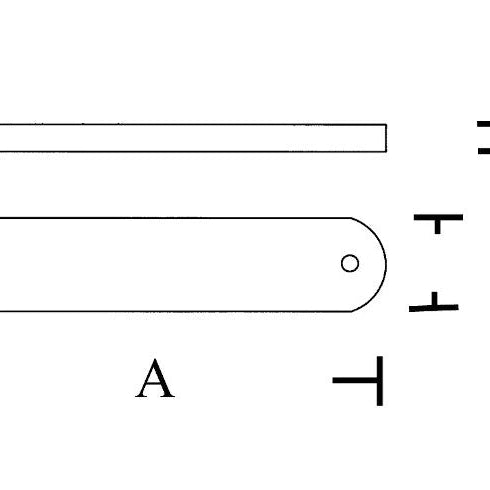

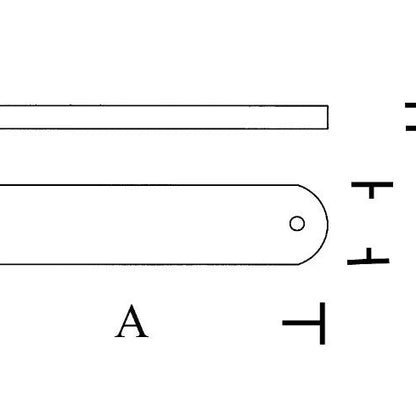

Installation and dimensions

Surface-mounted on smooth surfaces, so no cutout is needed. The integrated LED driver delivers constant, flicker-free light.

Choose the 10–16 V version for 12 V systems or the 20–30 V version for 24 V systems. With 0.2 W or 0.3 W depending on version, the light is well suited to operation from the on-board battery.

Versions and order numbers
Order no.Version
1000WH MOD.3 12V10-16V
1000WH MOD.3 24V20-30V

10–16 V version 0.2 W, 20–30 V version 0.3 W. Specify version when ordering.

Frequently asked questions

Which light colours does the Courtesy Light 1000 MOD.3 offer?
White, red and orange in one fixture. Orange is created by activating white and red at the same time.

Does it work on 12 V and 24 V boats?
Yes. The 10–16 V version is for 12 V systems, the 20–30 V version for 24 V systems. Please specify the version when ordering.

Can it be used outdoors?
Yes. It is rated IP65, dust-tight and protected against water jets, and suits interior and exterior positions such as cockpits and decks.

How much power does it use?
0.2 W in the 10–16 V version and 0.3 W in the 20–30 V version. That makes it suitable for long operating hours on the battery.

How is it installed?
It is surface-mounted on a smooth surface, so no cutout is needed. The housing measures 82 × 20 × 6 mm.

Can the light source be replaced?

No. The LED is permanently built into the light and cannot be replaced.
