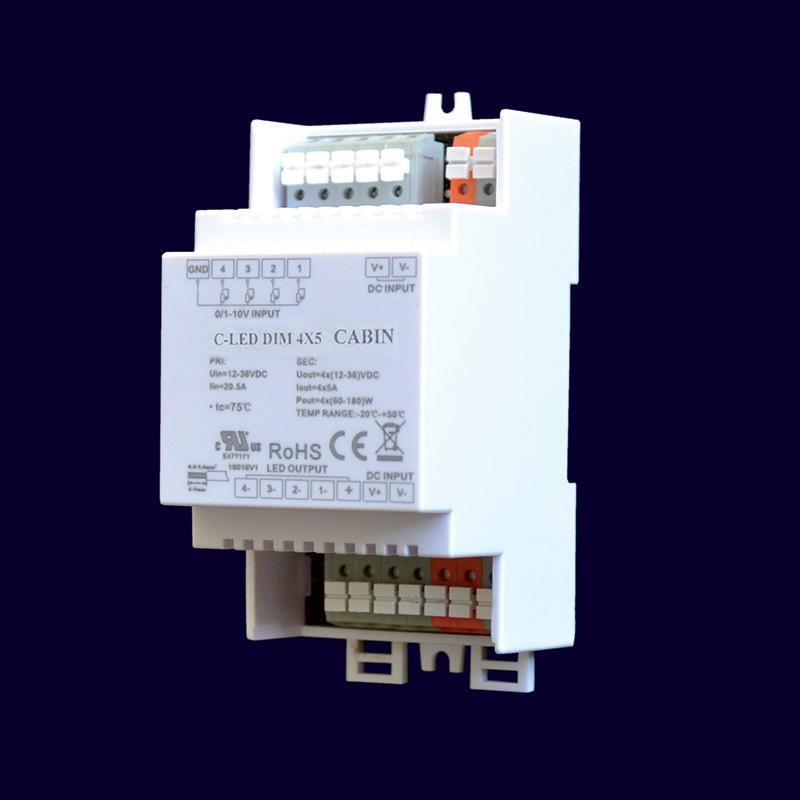

C-LED DIM 4 Channel PWM Dimmer

C-LED DIM 4 Channel PWM Dimmer

C-LED DIM CV DIN 4x5A

€139,90 EUR
€139,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The C-LED DIM is a 4 channel PWM dimmer for Cabin LED lights of the 5521, 5581, 5583, 5586 and 55812 series. It is installed between the power supply and the lights and controls one to four channels with up to 5 A each. A push switch sets the brightness, supported by soft start, smooth dimming and a memory function.

    Where to use it

    Dimming control for Cabin LED lighting on board. With one to four channels of up to 5 A each, a single unit can dim several groups of lights from the 5521, 5581, 5583, 5586 and 55812 series. Soft start and smooth dimming make brightness changes gradual, and the memory function keeps the set level.

    Installation and dimensions

    Install the C-LED DIM between the power supply and the LED light(s). It uses PWM (Pulse Width Modulation) and supports one to four channels with a maximum of 5 A per channel.

    Brightness is controlled with a push switch, which dims the connected lights to the preferred level. Soft start, smooth dimming and the memory function are integrated.

    Frequently asked questions

    Which Cabin lights can the C-LED DIM dim?
    It is designed for the light series 5521, 5581, 5583, 5586 and 55812. The dimmer controls them with PWM (Pulse Width Modulation).

    How many channels does the dimmer have?
    It supports one to four channels. Each channel handles a maximum of 5 A.

    Where is the dimmer installed?
    Between the power supply and the LED light(s). Each of the up to 4 channels carries up to 5 A.

    How is the brightness adjusted?
    With a push switch that dims the connected lights to the preferred level. Dimming works with PWM, with soft start and smooth transitions.

    Does the dimmer remember the brightness setting?
    Yes. It has a memory function for the set brightness level, on Cabin lights of the 5521, 5581, 5583, 5586 and 55812 series.
