6818 Sail Light
6818 Sail Light
SKU:6818-02 36SAIL
Couldn't load pickup availability

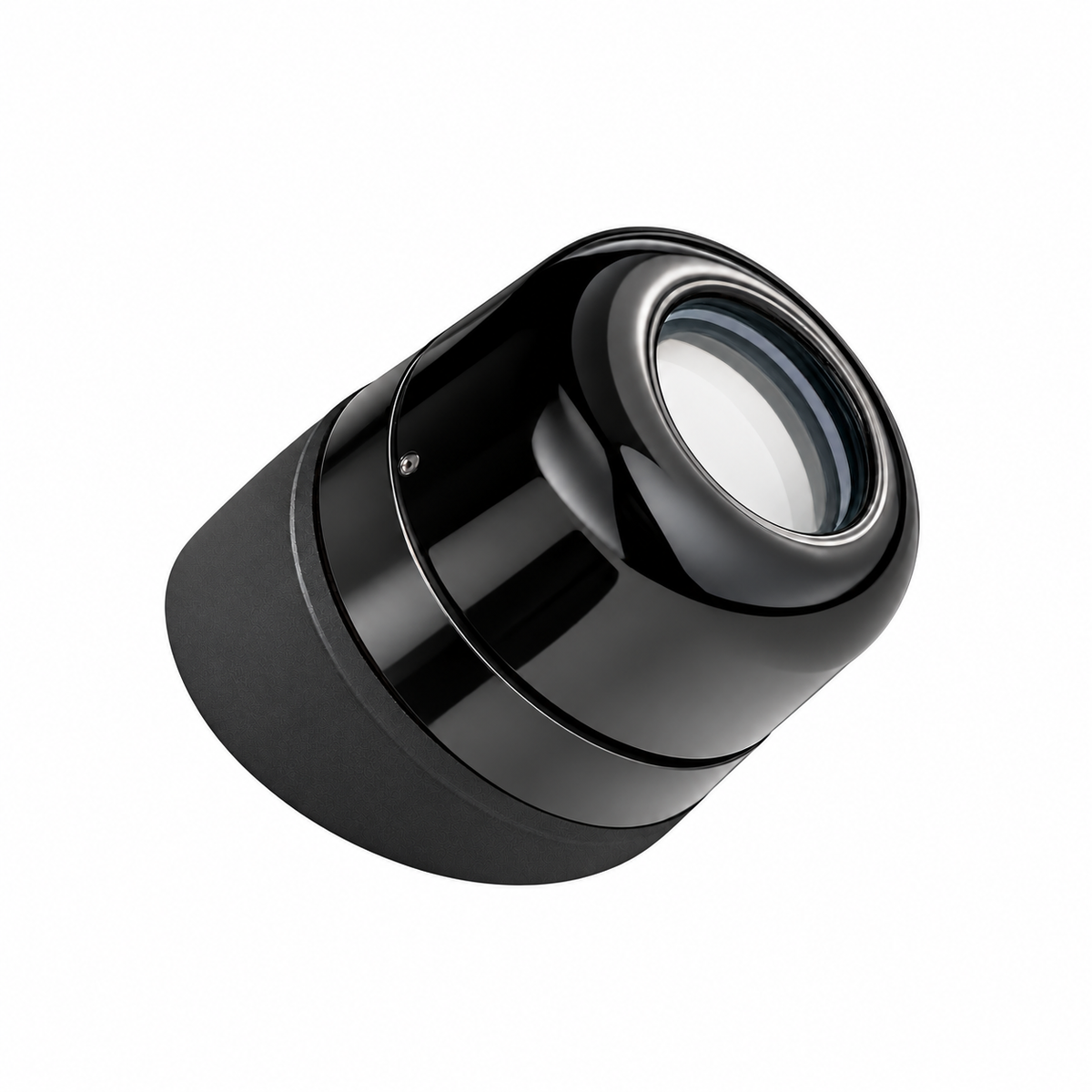

An LED sail light in aluminium for sailing yachts. It lights the sails after dark, so you can assess and fine-tune trim throughout the night. It runs on 10–32 V and comes with a base set at 60° to the deck.
Where to use it
Night sailing and offshore racing: sail trim does not stop at sunset. The 6818 lights the sails from the deck, so the crew can see the sail shape and adjust trim through the night. The 10–32 V input covers both 12 V and 24 V on-board systems.
Specifications
Supply voltage: 10–32 V
Mounting: base for bonding directly to the deck
Material: aluminium
Base angle: 60° to the deck (standard), customisable
Installation and dimensions

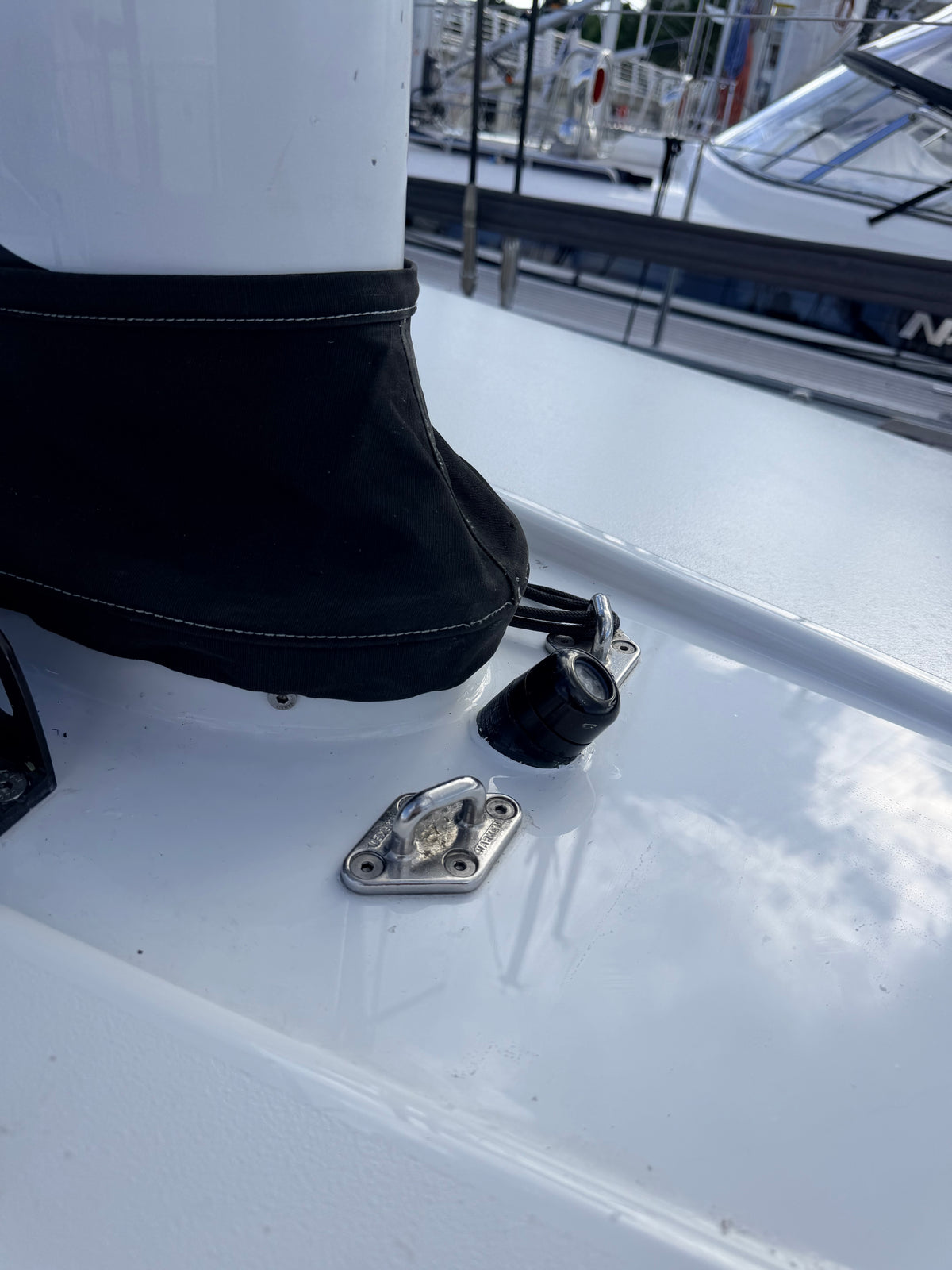

The base is designed to be bonded directly to the deck. As standard it holds the light at 60° to the deck surface. The angle can be customised.
Connect the light to the 10–32 V supply. This covers 12 V and 24 V systems.
- 410 lmLight output
- 3.6 WPower consumption
- 4000 KColour temperature, CRI >95
- 36°Beam angle
- 10–32 V DC 12 V and 24 V systems
- IP67Ingress protection
- PWMDimmable
- >50,000 hLED lifetime
Specifications
Specifications
Light
| Light output | 410 lm |
|---|---|
| Colour temperature | 4000 K |
| Colour rendering | CRI >95 |
| Beam angle | 36° |
| Number of LEDs | 3 |
Electrical
| Supply voltage | 10–32 V DC |
|---|---|
| Power consumption | 3.6 W |
| Current at 12 V | approx. 0.3 A |
| Current at 24 V | approx. 0.15 A |
| Cable length | 10000 mm |
| Dimming | PWM |
Mechanical
| Mounting | Bonded to deck |
|---|---|
| Fixing | bonded directly to the deck |
| Material | Aluminium |
| Ingress protection | IP67 |
| LED lifetime | >50,000 h |
