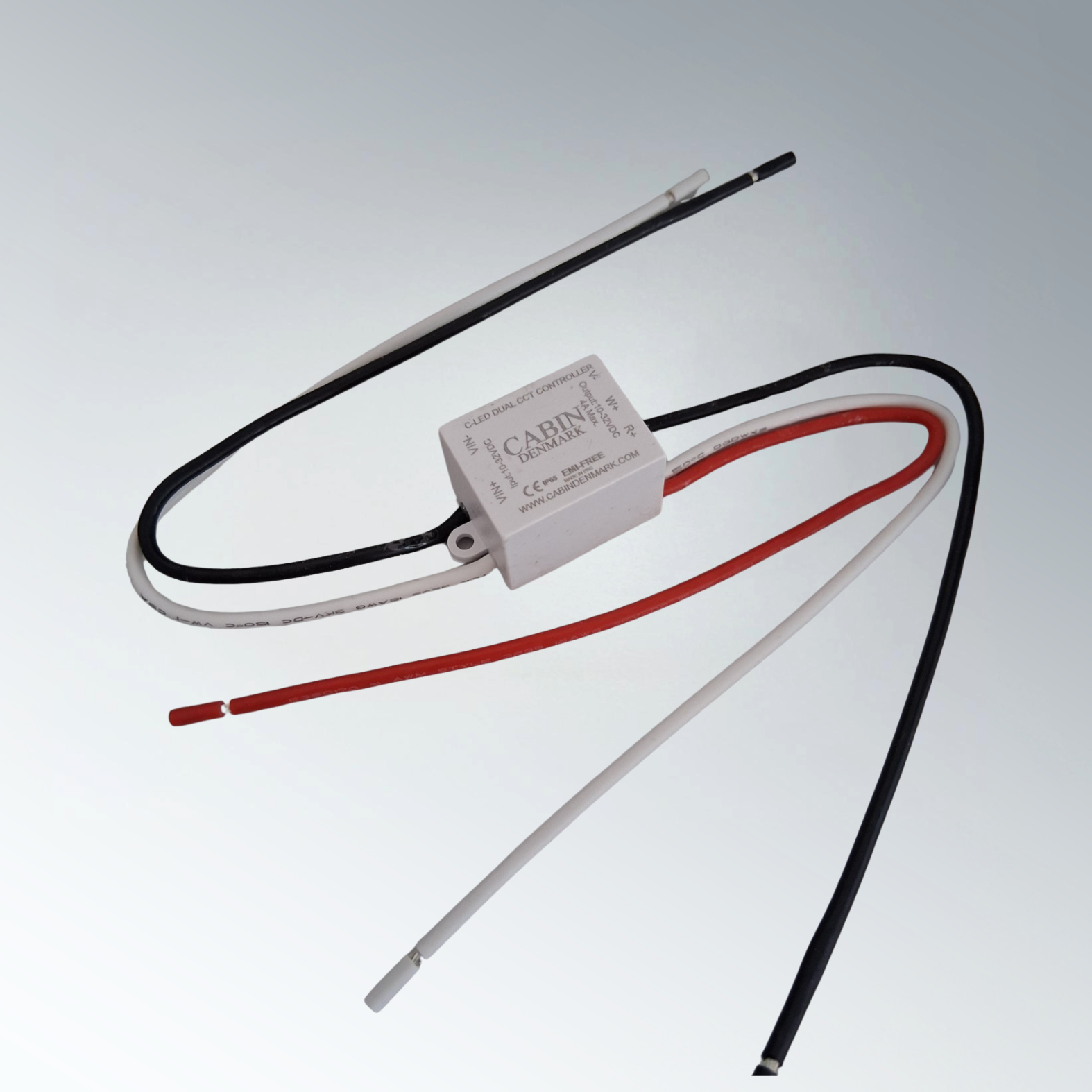

C-LED Dual CCT Controller

Marine Inline Controller for Dual-Color LED Lighting Systems

Product Summary

The C-LED Dual CCT Controller is a compact marine LED inline controller designed for luminaires with two light colors, such as red night lighting and white working light. It enables simple switching between two lighting modes using the existing power supply and switch, without the need for additional control wiring.

Installed directly inline before the luminaire, the controller allows dual-color LED fixtures to be integrated easily into yacht and boat electrical systems. The intelligent switching logic enables users to toggle between lighting outputs by briefly interrupting the power supply.

With its IP68 protection rating, compact dimensions, and compatibility with 10–32 V DC marine electrical systems, the C-LED Dual CCT Controller is ideal for yacht lighting systems, retrofit installations, and new builds.

Dimensions

30 × 15 × 15 mm

The compact inline design allows installation directly near the luminaire or within the existing wiring harness, making it ideal for marine retrofit installations and space-limited technical compartments.

Key Features

• Compact inline LED controller for dual-color lighting
• Switch between two lighting outputs via existing power switch
• No additional control wiring required
• Ideal for retrofit installations and new yacht builds
• IP68 protection rating for marine environments
• Compatible with 10–32 V DC onboard electrical systems and up to 4A

Typical Applications

The C-LED Dual CCT Controller is designed for flexible use in marine and yacht lighting systems, including:

• Switching between red night lighting and white working light
• Retrofitting dual-color LED luminaires into existing wiring harnesses
• Marine and yacht interior lighting systems
• New builds where switch panels or cable layouts should remain unchanged

Operating Principle

The controller uses a simple and intuitive switching logic based on power interruption.

Power ON
→ Output 1 active (for example red night light)

Power OFF briefly (< 10 seconds) → ON
→ Output 2 active (for example white working light)

Power OFF briefly again (< 10 seconds) → ON
→ switches back to Output 1

Power OFF for more than 10 seconds
→ controller resets and starts again with Output 1

This operating principle allows two lighting modes to be controlled through a single existing power circuit, making installation particularly simple.

Marine Installation Advantages

The C-LED Dual CCT Controller is specifically designed for use in yachts, boats, and marine lighting systems.

Its compact size allows installation directly before the luminaire, while the IP68 protection rating ensures reliable performance even in demanding marine environments where humidity, vibration, and temperature fluctuations may occur.

Because the controller operates using the existing power switch, it is especially useful for retrofit projects where new control wiring is not practical.

Technical Specifications

• Product: C-LED Dual CCT Controller
• Input voltage: 10–32 V DC
• Maximum power: 4A
• Outputs: 2 light outputs (dual color)
        Typical configuration: red / white lighting
• Ground: Common ground
• Protection rating: IP68
• Mounting: Screw mounting
• Dimensions: 30 × 15 × 15 mm

Product Benefits

The C-LED Dual CCT Controller provides a simple and reliable solution for operating dual-color LED lighting systems in marine environments.

• enables dual-color lighting using a single power circuit
• ideal for red night lighting and white working light combinations
• simple installation without additional control wiring
• compact inline design for flexible mounting
• robust IP68 construction for marine applications
• compatible with most yacht and boat electrical systems

What is the C-LED Dual CCT Controller used for?

It is used to control dual-color LED lighting systems on yachts and boats, allowing switching between two lighting outputs such as red night light and white working light.

Does the controller require additional control wiring?
No. The controller works through the existing power supply and switch, making it ideal for retrofit installations.

Is the controller suitable for marine environments?
Yes. The device features IP68 protection and is designed for installation in marine lighting systems.
